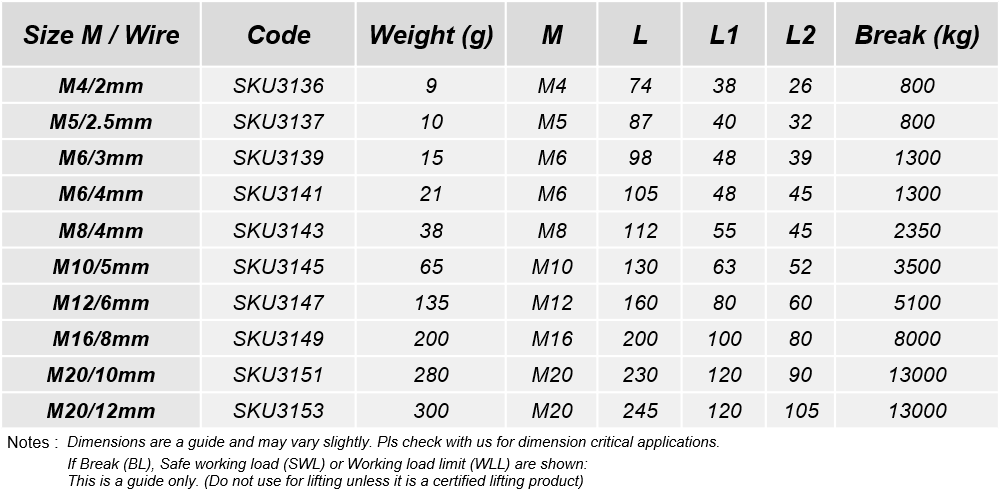

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Swage Stud Terminal LH Thread
Terminals are used at the ends of lengths of wire as connectors or end stops. Swage Stud Terminals have a threaded bolt at one end that allows the wire to be secured through posts, and threaded directly
into female threaded receivers. The process used to join the wire and eye terminal is hydraulic swaging or pressing.
Because of the kit required, these terminals are generally not best suited for DIY projects or on-site jobs.
For wire rope assembly solutions that are easy to fit by hand, take a look at our self assembly range. Available in sizes M5/2mm - M20/12mm. Made in 316 Stainless Steel.
Other names for this product: Wire Rope Stud
