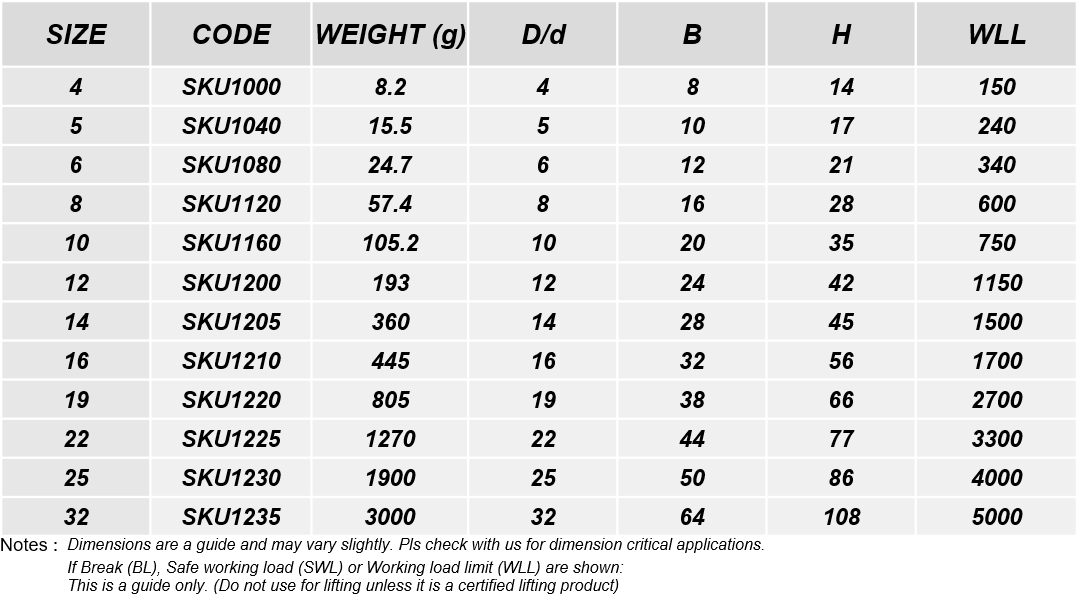

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Dee Shackle - Forged
Dee Shackles are best suited to bidirectional load situations, such as connection points on sails and with chain. This product comes in sizes 4-32mm.
Made from 316 Stainless Steel. We now stock a large range of Dee Shackles, including wide, long and load rated.
Other names for this product: D, D Shackle, Lifting Shackle, Chain Shackle
Click the image to Download Datasheets
