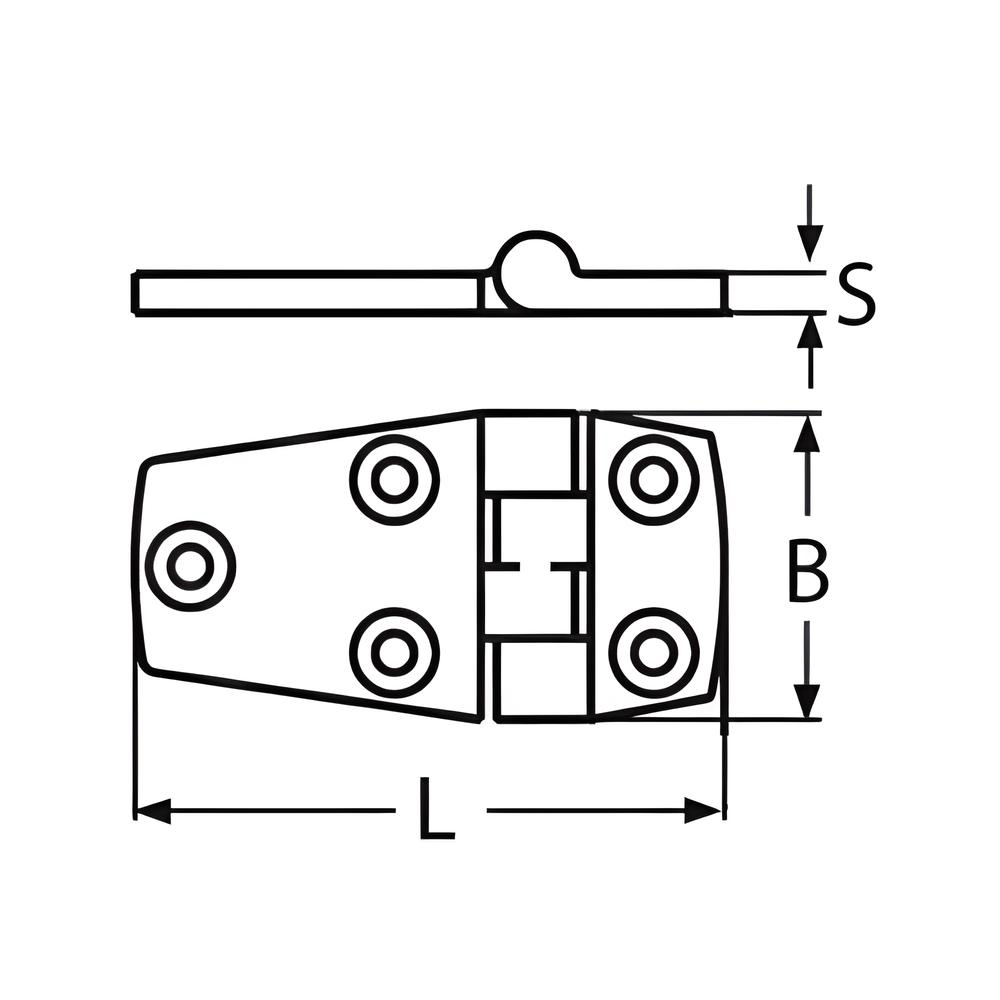

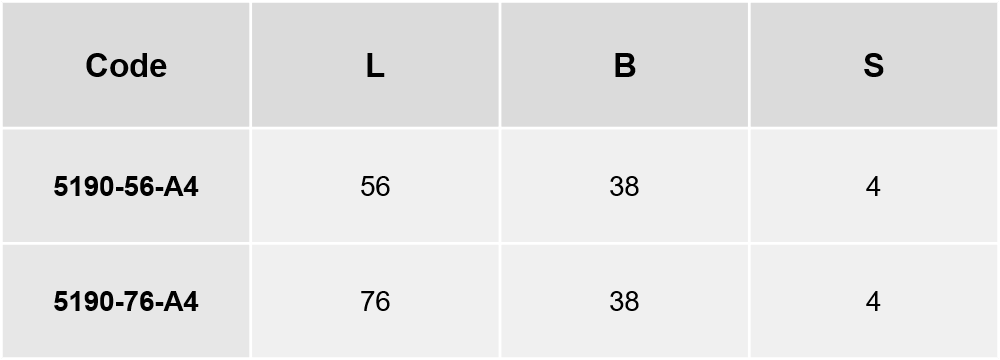

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :

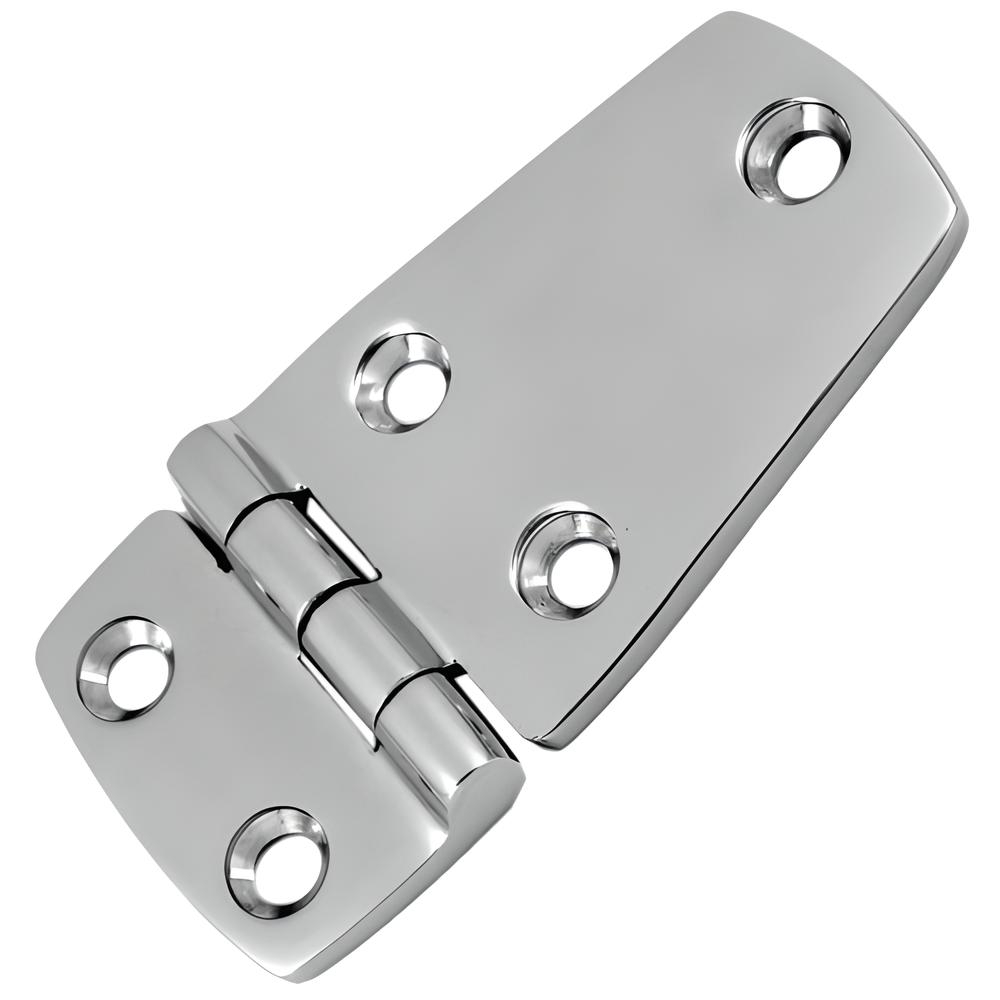

Stainless Steel Door Hinge Small Side
This type of hingeis used where there is limited space on the door surround. It is made from high qulaity marine grade stainless
Other names for this product: Door Hinge, Hatch Hinge, Strap Hinge
Click the image to Download Datasheets
