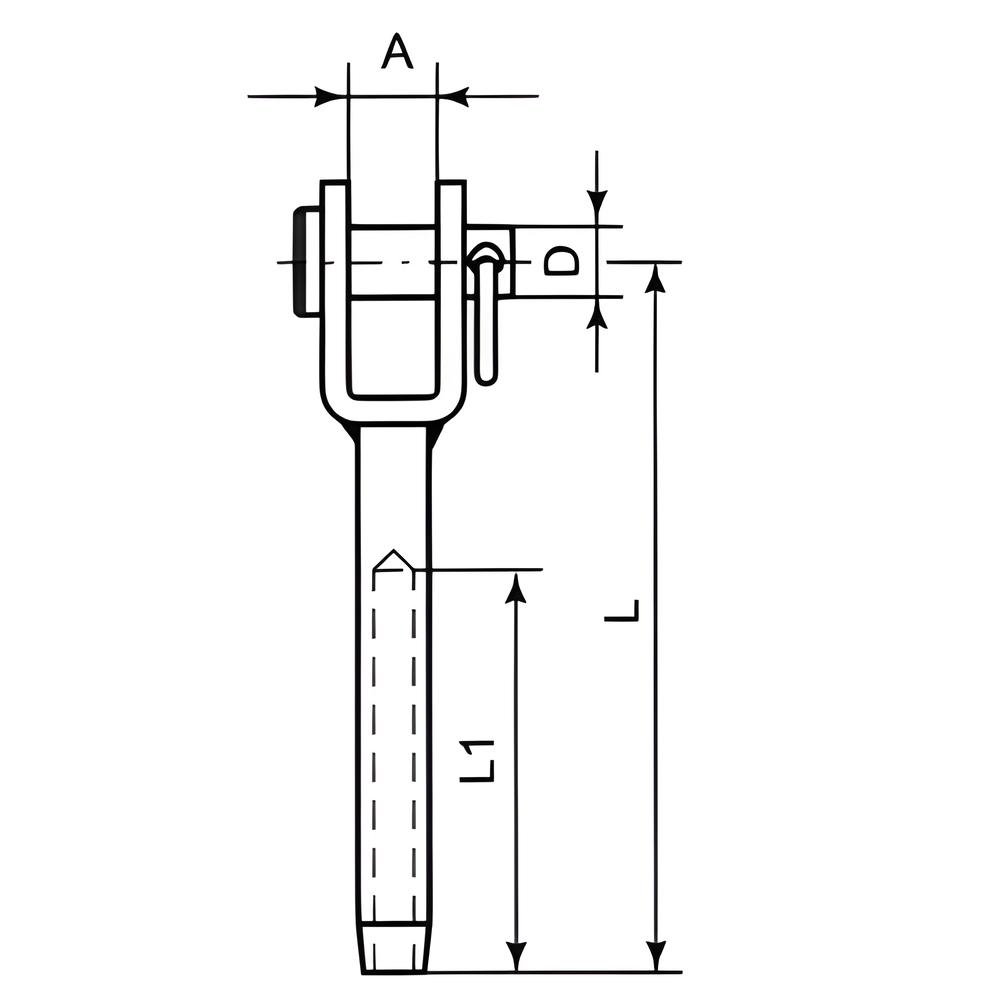

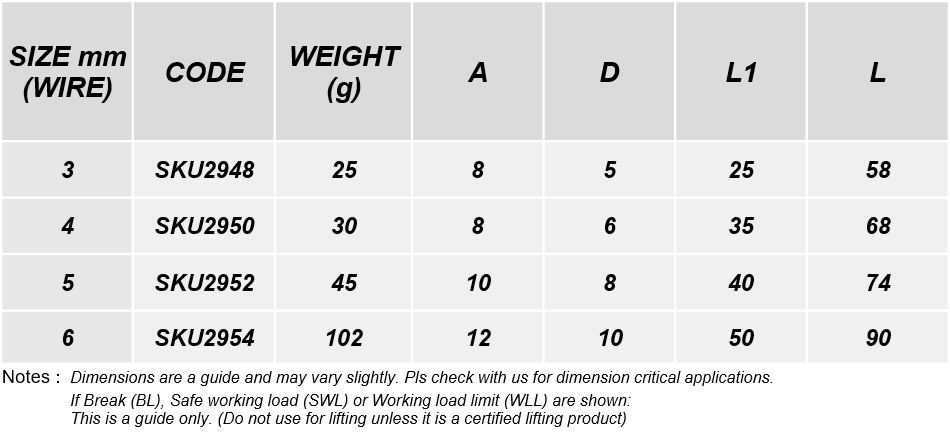

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Mini Fork Terminal
Terminals are used at the ends of lengths of wire as connectors or end stops. Mini Fork Terminals have a jaw opening with clevis pin,
that allows the wire to be attached to stationery points such as eye plates, eyebolts and lacing eyes, just like the standard type.
They are for use architecturally, rather than load bearing. The process used to join the wire and fork terminal is hydraulic swaging or pressing.
Because of the kit required, these terminals are generally not best suited for DIY projects or on-site jobs. For wire rope assembly solutions that are easy to fit by hand, take a look at our self assembly range. Available in sizes 3-6mm. Made in 316 Stainless Steel.
Other names for this product: Mini Swage Fork
