Fischer Anchor bolts FAZII K Type BZP

Fischer Anchor bolts FAZII K type (for shorter drill depth)
Dimensions: 4 options of length and diameter
Material: Zinc Plated

Click the option box to choose size

P5360

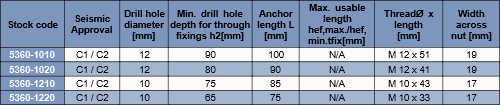

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Fischer BZP Anchor Bolts FAZII K Type

The Anchor Bolt FAZII K Type In BZP - Zinc plated steel - has a low setting depth which will save you time when drilling and mounting. Primarily used to fix heavy loads to cracked concrete.

Installation summary

The FAZII anchor bolt has been specifically designed for positioned and push-through installation. Alternatively you can use it for stand-off installation as it holds a long thread.

On tightening the nut, the bolt will be pulled into the expansion clip, expanding it against the wall of the drill hole.

The OVERVIEW tab will inform you of the different sizes and diameters of the anchor bolts.

If there is further information on this product please see DOWNLOADS tab.


Other names for this product: Anchor Bolt, Stainless Stud Bolt, Concrete Bolts, Concrete Screws, Concrete Fasteners, Foundation Bolt, Balustrade Support Bolt

MATERIAL
MATERIAL: ZINC PLATED
