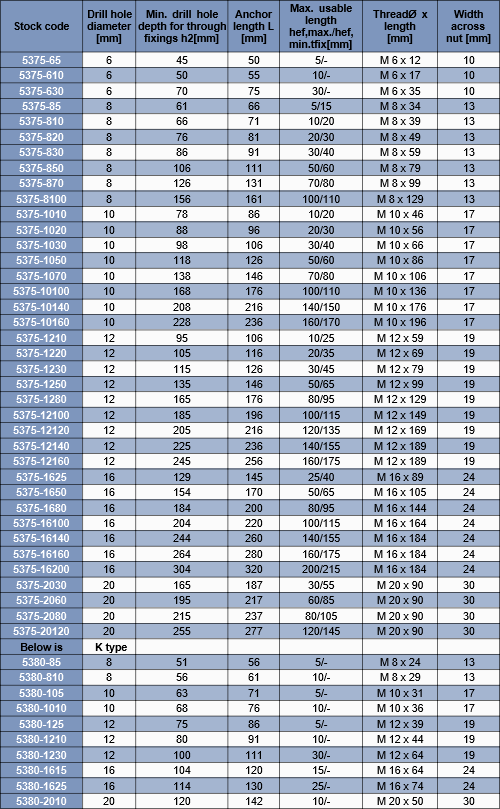

Chart showing dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances. For "dimension sensitive" applications pls ask for measurement.
Click below for an engineering drawing
The FBNII anchor bolt can be used for positioned and push-through installation. It is also available to be used for stand-off installation as it holds a long thread.
When you have finished tightening the nut, the bolt will be pulled into the expansion clip. Thus making it expand against the wall of the drill hole.
The OVERVIEW tab will inform you of the different sizes and diameters of the anchor bolts.
If there is further information on this product please see DOWNLOADS tab.
