Fischer Anchor bolts FBN II Galvanised
Fischer Anchor bolts FBN II
Dimensions: M8 to M20 in various lengths
Material: Galvanised
Click the option box to choose size

P5385

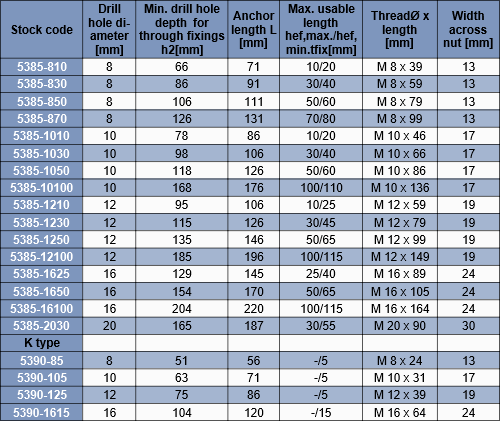

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Fischer Galvanised Anchor Bolts FBNII

These FBNII Anchor bolts are made from Hot dipped galvanised steel. Making them very suitable where rust proofing is important.

Installation summary.

The FBNII anchor bolt can be used for positioned and push-through installation. It is also available to be used for stand-off installation as it holds a long thread.

When you have finished tightening the nut, the bolt will be pulled into the expansion clip. Thus making it expand against the wall of the drill hole.

The OVERVIEW tab will inform you of the different sizes and diameters of the anchor bolts.

If there is further information on this product please see DOWNLOADS tab.


Other names for this product: Anchor Bolt, Stainless Stud Bolt, Concrete Bolts, Concrete Screws, Concrete Fasteners, Foundation Bolt, Balustrade Support Bolt

MATERIAL
MATERIAL: GALVANISED
