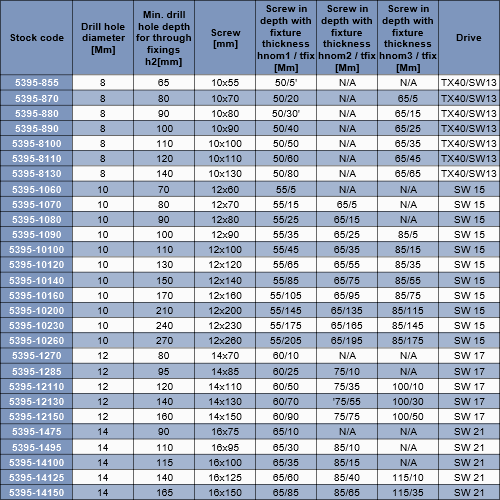

Chart showing dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances. For "dimension sensitive" applications pls ask for measurement.
Click below for an engineering drawing
Step 1 - Drill the hole.
Step 2 - Clean the drill hole.
Step 3 - Insert screw and fix
Once installed further turning of the concrete screw must not be possible. The head of the screw must be supported on the fixture and is not damaged.
The OVERVIEW tab will inform you of the different sizes and diameters of the concrete screws.
If there is further information on this product please see DOWNLOADS tab.
