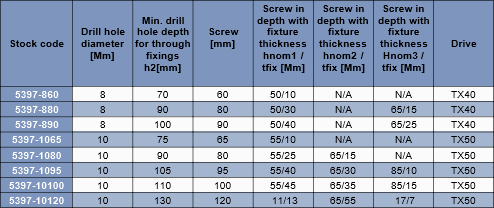

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Fischer Stainless Steel Countersunk Concrete Screw
This concrete screw has a countersunk head, where aesthetics are important in the installation.
Step 1 - Drill the hole.
Step 2 - Clean the drill hole.
Step 3 - Insert screw and fix
Once installed further turning of the concrete screw must not be possible. The head of the screw must be supported on the fixture and is not damaged.
The OVERVIEW tab will inform you of the different sizes and diameters of the concrete screws.
If there is further information on this product please see DOWNLOADS tab.
Other names for this product: Cement Screws, Concrete Fasteners, Concrete Anchor Bolts
Click the image to Download Datasheets
