Fischer Resin studs BZP
Fischer Resin studs
Dimensions: from M8 to M30 in many lengths
Material: Zinc Plated
Click the option box to choose size

P5410

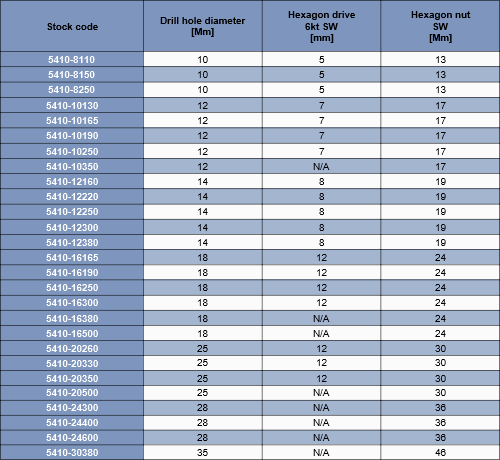

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Fischer Zinc Plated Resin studs

The RG M Fischer anchor rod is a component for injection mortars or mortar cartridges. Whilst mounting with the resin capsule, set the anchor rod RG M through rotating and hitting motions with a hammer drill. The capsule is destroyed during the setting process, which mixes and activates the mortar compound. During mounting with injection mortars, the anchor rod is pushed into the drill hole manually by lightly rotating it.
Other names for this product: Resin Anchors, Resin Bolts, Resin Anchor Bolts, Resin Fixings

MATERIAL
MATERIAL: ZINC PLATED
