Stainless steel Swageless Fork Terminals

Swageless / Self Assembly Terminals in various sizes
Dimensions: Ranging from 4 to 6mm wire size
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P500

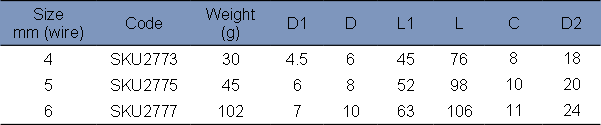

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

Click below for an engineering drawing :

Product Information :

Stainless Steel Swageless Fork Terminals

Swageless Fork Terminals are part of our self assembly range. They are fitted by unscrewing the part,
feeding the wire through and splaying out the individual strands, and locking the wire into place by screwing the component
back together. When used correctly, these parts are incredibly strong, as well as being visually appealing, so are a great option
for DIY home improvements. Fork Terminals have a jaw opening with clevis pin, that allows the wire to be attached to stationery points such as eye plates,
eyebolts and lacing eyes. These are available in 3 sizes - 4, 5, and 6mm, and are made in 316 Stainless Steel.
Other names for this product: Self Assembly Fork Terminal, Swageless Jaw Terminal
