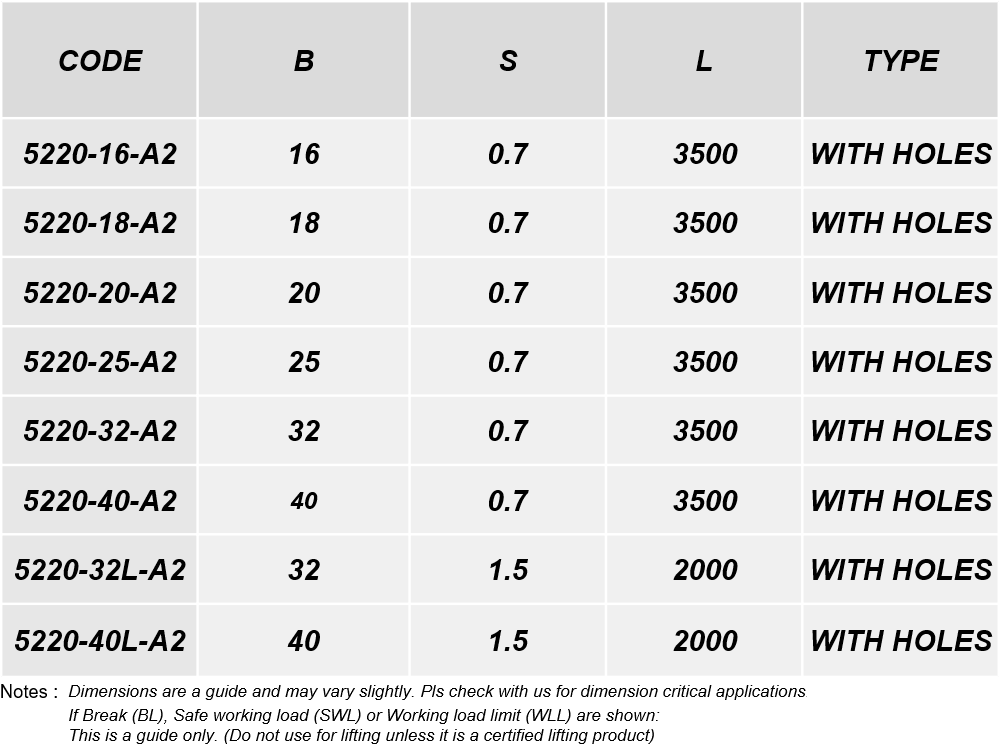

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Piano Hinge
Designed to fit the entire length of the door. Therefore creating a seemless sleek look.
Other names for this product: Door Hinge, Hatch Hinge, Continous Hinge
Click the image to Download Datasheets
