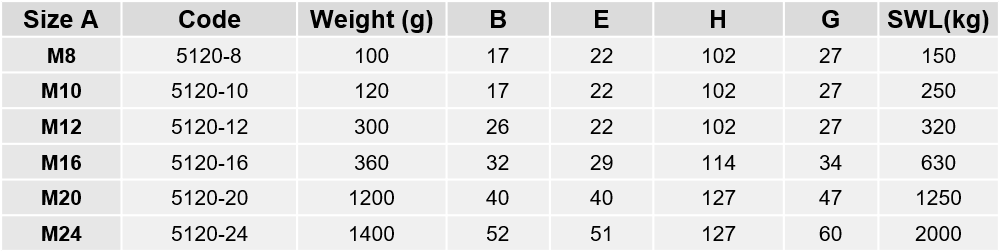

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Long shank Dynamo eyebolts to B.S.4278 Table 3
These eyebolts have a long thread to make them suitable for thru hole applications. They have a load rating Forged on them
Other names for this product: Eye Bolt, Lifting Eye, Threaded Eye, Male Eye
SELF COLOUR STEEL
Click the image to Download Datasheets
