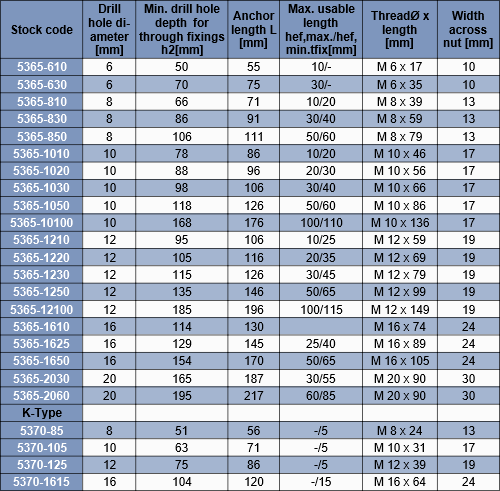

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Fischer Stainless Steel Anchor Bolts FBNII
The Anchor Bolt FBNII Is used for non cracked concrete. ETA option 7. The anchorage depth grants good load bearing capacities at a modest price.
The FBNII anchor bolt can be used for positioned and push-through installation. It is also available to be used for stand-off installation as it holds a long thread.
When you have finished tightening the nut, the bolt will be pulled into the expansion clip. Thus making it expand against the wall of the drill hole.
The OVERVIEW tab will inform you of the different sizes and diameters of the anchor bolts.
If there is further information on this product please see DOWNLOADS tab.
Other names for this product: Anchor Bolt, Stainless Stud Bolt, Concrete Bolts, Concrete Screws, Concrete Fasteners, Foundation Bolt, Balustrade Support Bolt
