Fischer Anchor bolts FBN II K type BZP
Fischer Anchor bolts FBN II Ktype for shorter drill depths
Dimensions: M8 to M16
Material: Zinc Plated
Click the option box to choose size

P5380

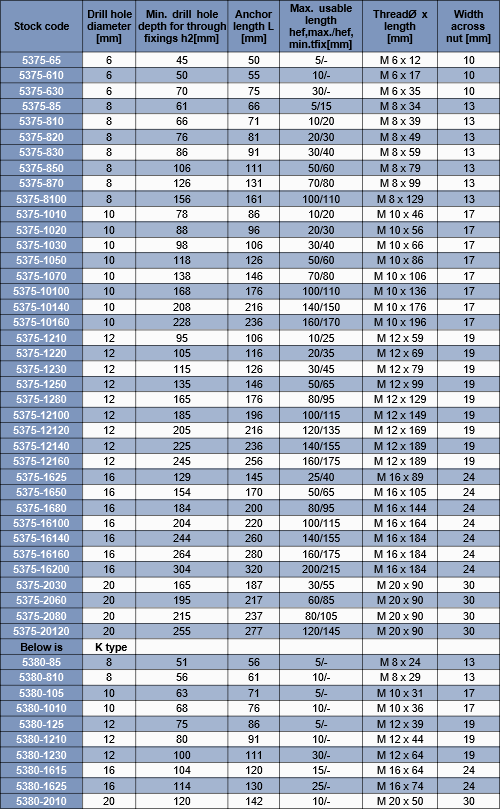

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Fischer BZP Anchor Bolts FBNII K Type

The K type FBNII anchor has the same properties as the standard type FBNII, but can be used with a shorter thread length, leading to quicker installation times.

Installation summary.

The FBNII anchor bolt can be used for positioned and push-through installation. It is also available to be used for stand-off installation as it holds a long thread.

When you have finished tightening the nut, the bolt will be pulled into the expansion clip. Thus making it expand against the wall of the drill hole.

The OVERVIEW tab will inform you of the different sizes and diameters of the anchor bolts.

If there is further information on this product please see DOWNLOADS tab.


Other names for this product: Anchor Bolt, Stainless Stud Bolt, Concrete Bolts, Concrete Screws, Concrete Fasteners, Foundation Bolt, Balustrade Support Bolt

MATERIAL
MATERIAL: ZINC PLATED
