Fischer Anchor bolts FBN II K type Galvanised
Fischer Anchor bolts FBN II K type for shorter drill depths
Dimensions: M16 to M20 in various lengths
Material: Galvanised
Click the option box to choose size
P5390

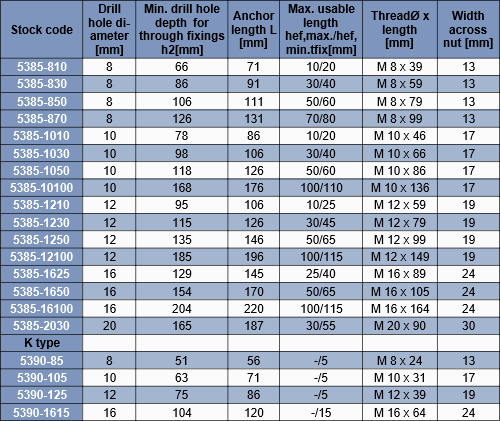

Chart showing Approximate dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :

Fischer Galvanised Anchor Bolts FBNII K Type

As with the standard FBNII Anchor bolts. These are made from Hot dipped galvanised steel. Making them very suitable where rust proofing is important. This K type variation is used in applications where a shorter hole depth is required.

Installation summary.

The FBNII anchor bolt can be used for positioned and push-through installation. It is also available to be used for stand-off installation as it holds a long thread.

When you have finished tightening the nut, the bolt will be pulled into the expansion clip. Thus making it expand against the wall of the drill hole.

The OVERVIEW tab will inform you of the different sizes and diameters of the anchor bolts.

If there is further information on this product please see DOWNLOADS tab.


Other names for this product: Anchor Bolt, Stainless Stud Bolt, Concrete Bolts, Concrete Screws, Concrete Fasteners, Foundation Bolt, Balustrade Support Bolt

MATERIAL
MATERIAL: GALVANISED

Click the image to Download Datasheets
