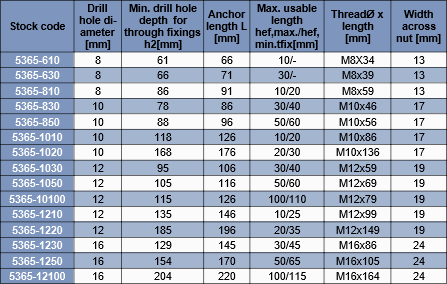

Chart showing dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances. For "dimension sensitive" applications pls ask for measurement.
The FXA anchor bolt is perfect for positioned and push-through installation. It is also able to be used for stand-off installation as it holds a long thread.
Once the anchor bolts nut has been tightened, the bolt will be pulled into the expansion clip and then it will expand against the wall of the drill hole.
The OVERVIEW tab will inform you of the different sizes and diameters of the anchor bolts.
If there is further information on this product please see DOWNLOADS tab.
