Stainless steel Asymmetric Snap Hook

Asymetric Snap Hooks in various sizes
Dimensions: Ranging from 60 to 100mm long
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P980

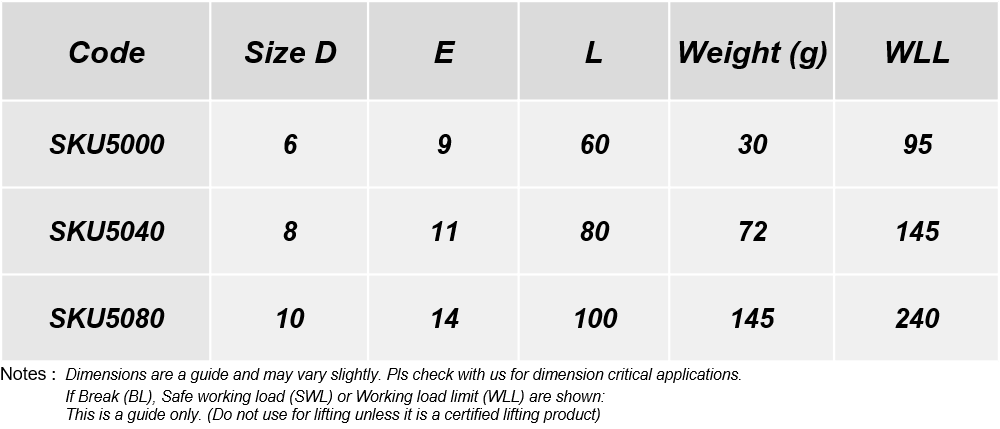

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Click below for an Engineering drawing

Where WLL or Break load are shown :
WLL = working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load:
  This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. For load bearing or lifting applications you should have the part or assembly tested and certified. Contact us if you require this)
Product Information :

Stainless Steel Asymmetric Snap Hook

Asymmetric Snap Hooks are stronger than standard Snap Hooks, and are often used on safety harnesses, fishing lines, mooring buoy lines, etc. Where the extra width makes it suitable for eg. webbing. Available in sizes 6, 8 and 10mm. Made from 316 Stainless Steel.
Other names for this product: Spring Hook
