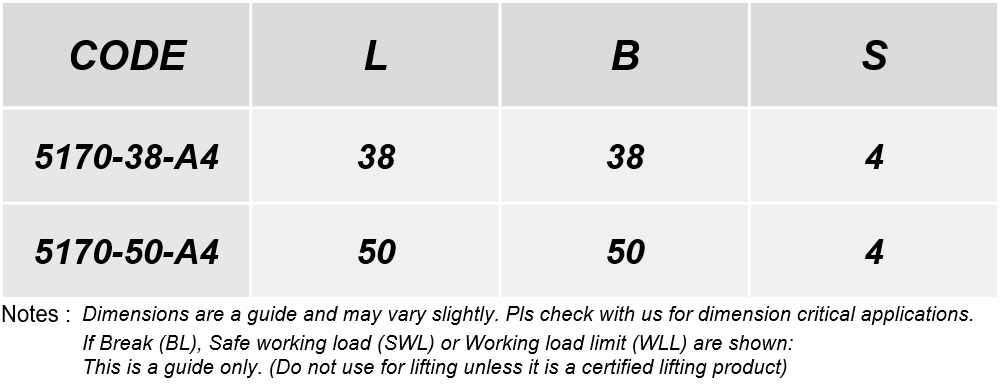

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Covered Hinge Rounded
A hinge with a nice rounded appearance
Other names for this product: Door Hinge, Hatch Hinge, Strap Hinge
Click the image to Download Datasheets
