Stainless steel Short Halyard Shackle
Short halyard Shackles in various sizes
Dimensions: Ranging from 5-8mm
Material: A4 Stainless
Click the option box to choose size
P300

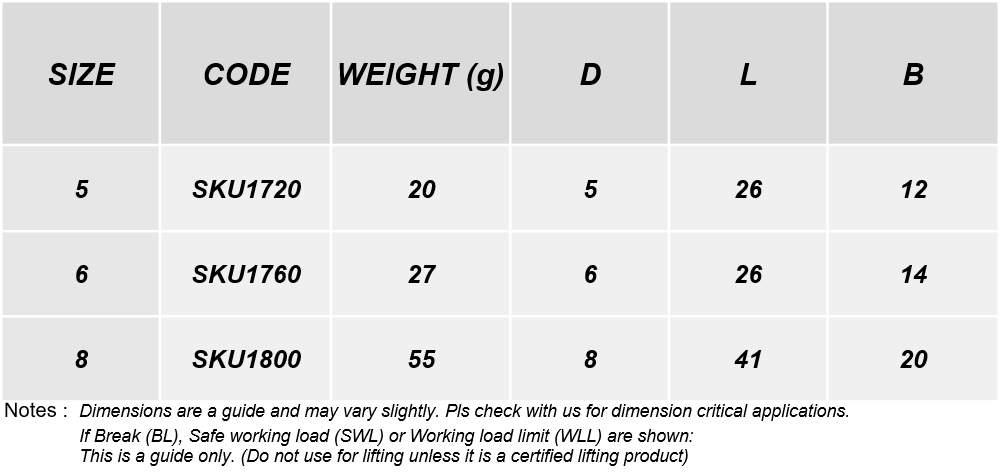

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

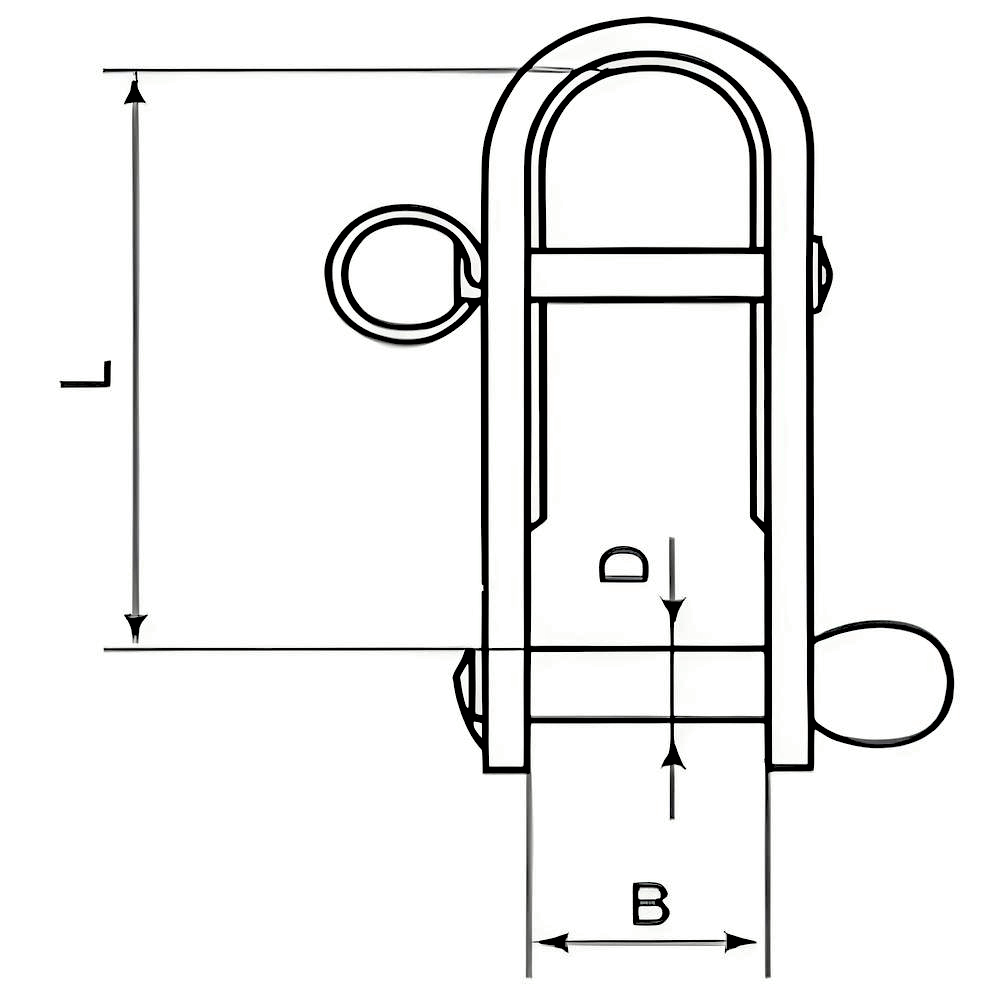

Click below for an engineering drawing

Product Information :

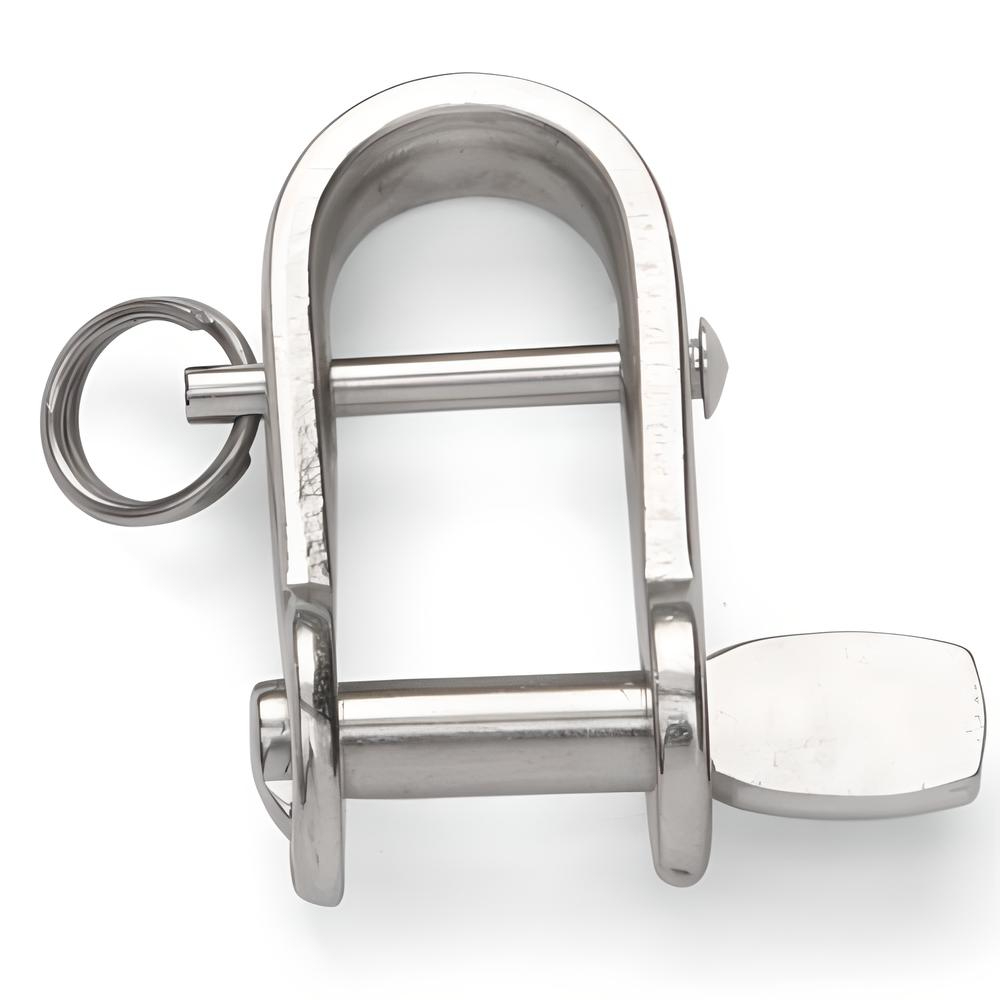

Stainless Steel Short Halyard Shackle

Part of the strip shackle range - our halyard shackles are a budget option of shackle for applications where safety is not a critical factor. Still made from premium grade 316 Stainless Steel. Available in three sizes.
Other names for this product: Headboard Shackle, Flat Shackle

MATERIAL
MATERIAL: A4 STAINLESS
