Stainless steel Swage to Swage Rigging Screw

Swage to Swage Turnbuckles in various sizes
Dimensions: Ranging from M6 to M16
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

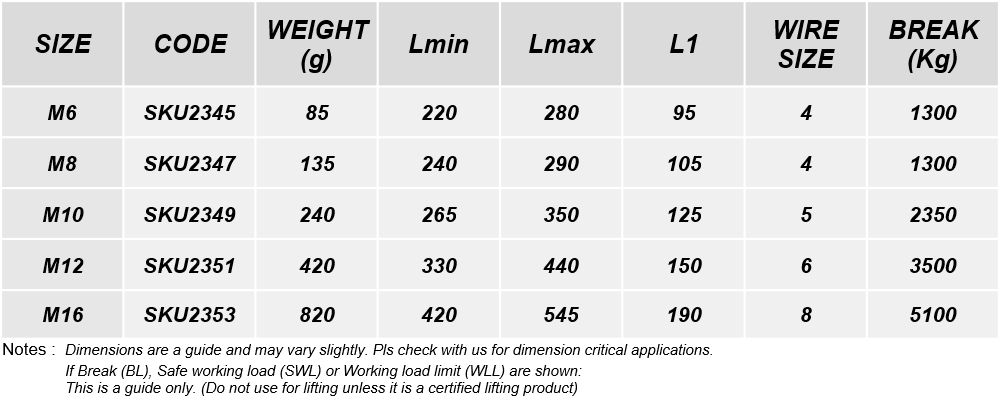

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Click below for an Engineering drawing

Where WLL or Break load are shown :
WLL = working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load:
  This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. For load bearing or lifting applications you should have the part or assembly tested and certified. Contact us if you require this)
Product Information :

Stainless Steel Swage to Swage Rigging Screw

The function of a Rigging Screw or Turnbuckle is as a tensioner or adjuster in wire rope assemblies.
This could take the form of balustrading, running rigging or catenery wires. You tighten the wire by rotating the barrel of the Rigging Screw. This is useful both at installation and in routine maintenance. Available in sizes M6 to M16. Machined Rigging Screws, advised for use in standing rigging available on request.
Please contact us for a quotation.
Other names for this product: Bottle Screw, Turnbuckle
