Stainless steel Welded Round Ring

Welded round Rings in various sizes
Dimensions: Ranging from 3mm to 12mm wire and 20mm ID to 70mm ID
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P1560

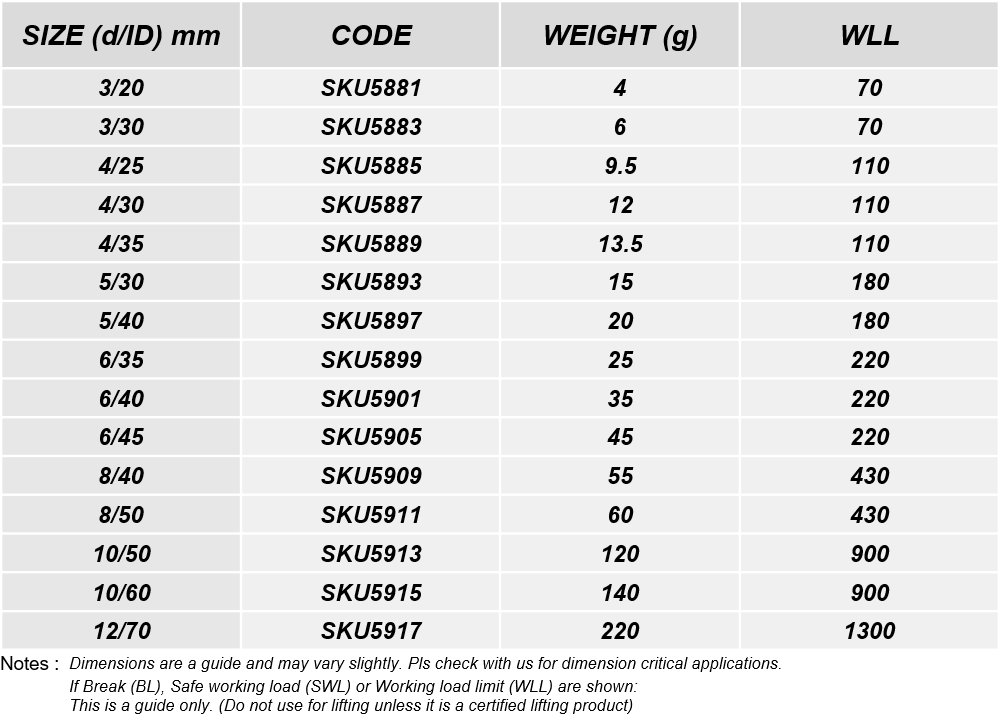

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Click below for an Engineering drawing

Where WLL or Break load are shown :
WLL = working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load:
  This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. For load bearing or lifting applications you should have the part or assembly tested and certified. Contact us if you require this)
Product Information :

Stainless Steel Welded Round Ring

Welded Round Rings are strong and corrosion resistant. Used as tethering points Made from 316 Stainless /steel, welded. Available in 13 sizes, ranging from 3-12mm thickness.
Other names for this product: O Ring
