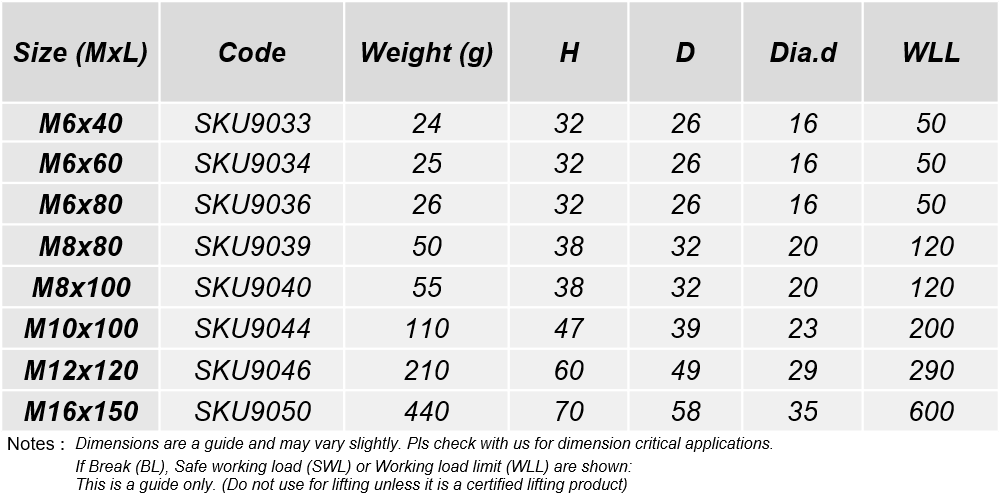

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Long Shank Eyebolt
Strong, durable, corrosion resistant. Ideal for use through beams and joists. These parts have a WLL - please see the table in specifications tab.Available in sizes M6-M16. Made from 316 Stainless Steel.
Other names for this product: Eye Bolt with Metric Thread, Screw Eye, Commercial Eye Bolts
Click the image to Download Datasheets
