A2 Stainless R clip

R clips in various sizes
Dimensions: ranging from 2 to 6mm for pin sizes 8 to 40mm
Material: A2 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P5342

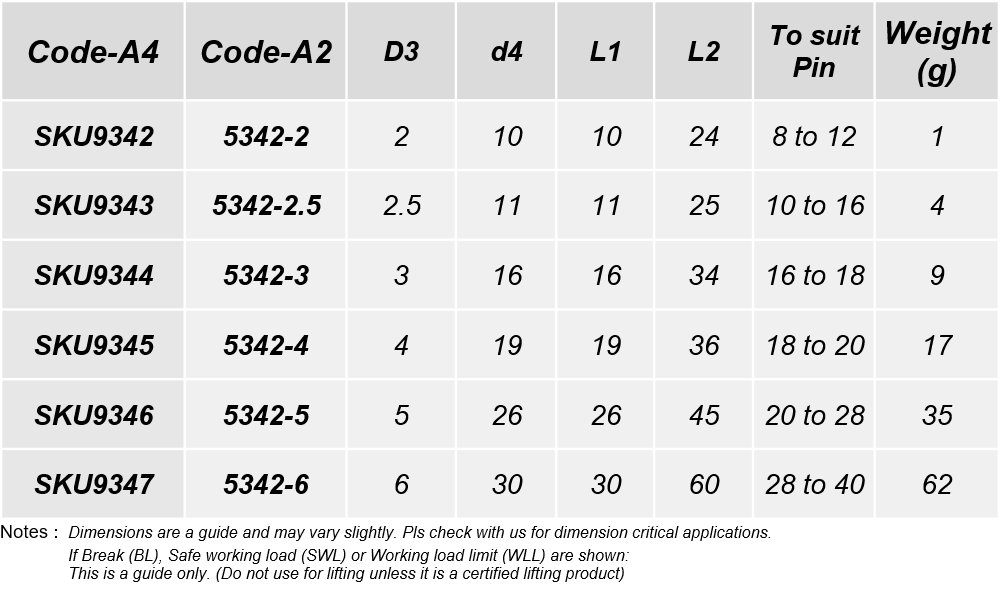

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing :

Product Information :

Stainless R clip or Beta pin

Use these R clips for retaining pins or cotter pins. Check size to chart to find suitability for size of pin
Other names for this product: rclip, Beta pin, Beta clip, R-clip

MATERIAL
MATERIAL: A2 STAINLESS
