Stainless steel Double coil R clip (Beta pin)

Double coil R clips in various sizes
Dimensions: ranging from 2.5 to 7mm for pin sizes 9 to 45mm
Material: A4 Stainless

Click the option box to choose size

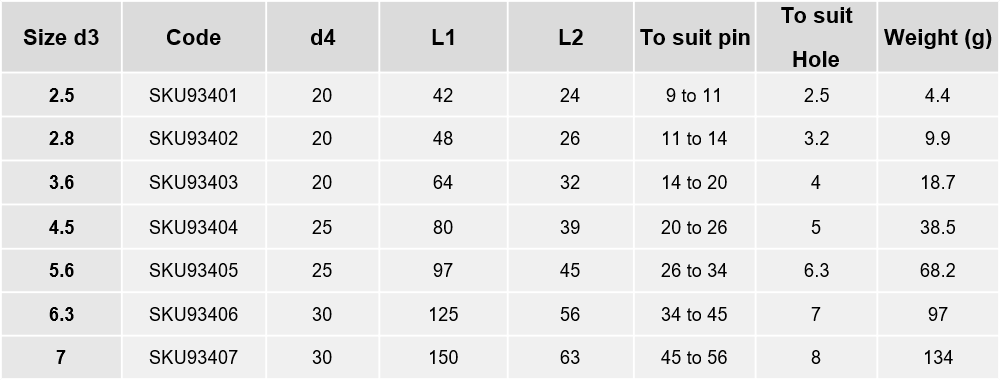

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Stainless steel Double coil R clip (Beta pin)

These R Clips are double wound which gives them a lot more strength than a standard R clip
Other names for this product: Beta pins, Hair pins, Anti rattle pins, Beta clips
