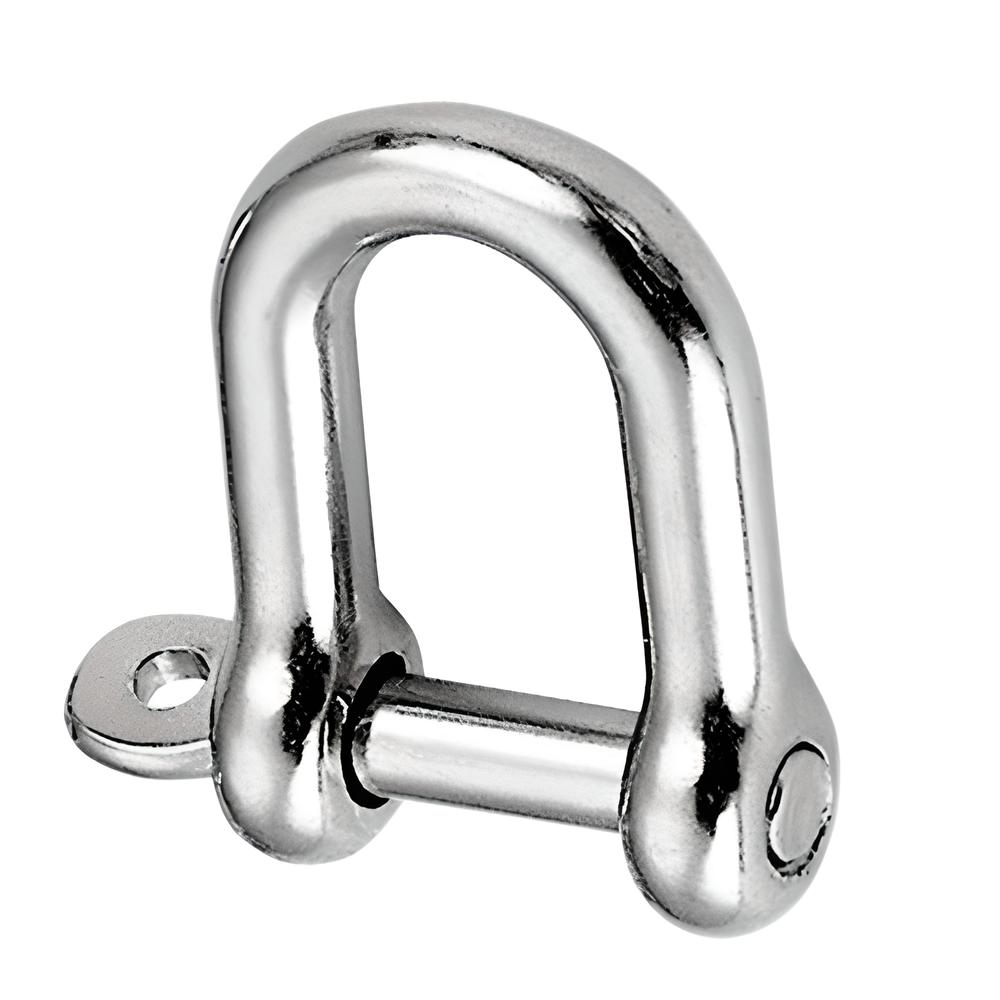

Dee Shackle - Captive Pin - Forged - 316 Stainless steel
Dee Shackle - Captive Pin - Forged - 316 Stainless steel Dee Shackle - Captive Pin - Forged - 316 Stainless steel
Save 10%
Dee Shackle - Captive Pin - Forged - 316 Stainless steel
Dee Shackles with a captive pin manufactured in A4 marine grade stainless steel. Sizes available : 4mm, 5mm, 6mm, 8mm, 10mm, 12mm. If the pin is unscrewed it will not fall off the shackle. The pin cannot be removed from the shackle, making it forgiving for use in marine environments or areas where you must not lose the pin, like in food processing areas.
Price per : Pack of 1
Further stock is available subject to a small lead time. Contact us for a quote.

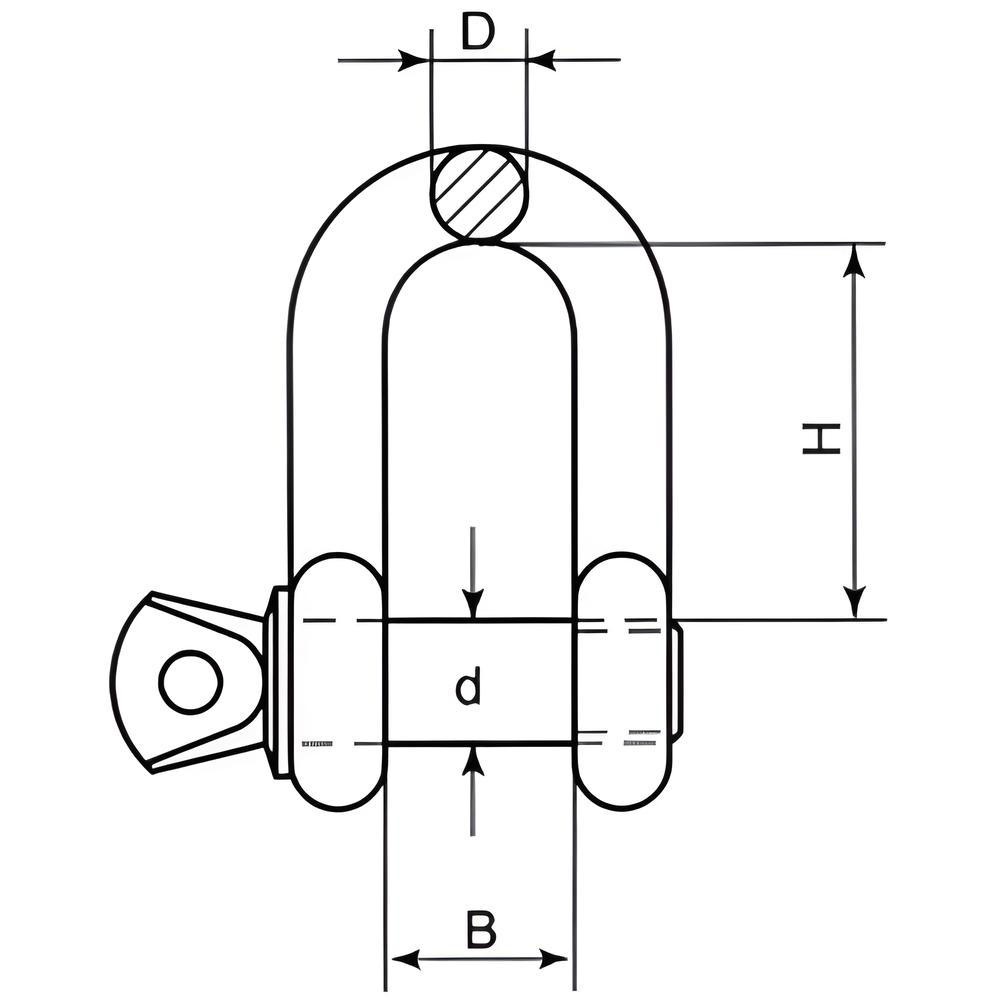

Option MATERIAL Size Code Weight (g) D d B H WLL Price Qty
4mm Dee shackle captive pin SKU12351 A4 STAINLESS 4 SKU12351 8.2 4 8 14 150 £0.94 £0.85 INC. VAT £1.02
105 In stock
5mm Dee shackle captive pin SKU12352 A4 STAINLESS 5 SKU12352 15.5 5 10 17 240 £1.15 £1.03 INC. VAT £1.24
Qty Price
20+ £0.98 INC. VAT £1.18
50+ £0.93 INC. VAT £1.11
116 In stock
6mm Dee shackle captive pin SKU12353 A4 STAINLESS 6 SKU12353 24.7 6 12 21 340 £1.07 £0.97 INC. VAT £1.16
Qty Price
20+ £0.92 INC. VAT £1.10
50+ £0.87 INC. VAT £1.04
227 In stock
8mm Dee shackle captive pin SKU12354 A4 STAINLESS 8 SKU12354 57.4 8 16 28 600 £1.81 £1.63 INC. VAT £1.96
Qty Price
20+ £1.55 INC. VAT £1.86
50+ £1.47 INC. VAT £1.76
140 In stock
10mm Dee shackle captive pin SKU12355 A4 STAINLESS 10 SKU12355 105.2 10 20 35 750 £2.86 £2.58 INC. VAT £3.09
Qty Price
20+ £2.45 INC. VAT £2.94
50+ £2.32 INC. VAT £2.78
17 In stock
12mm Dee shackle captive pin SKU12356 A4 STAINLESS 12 SKU12356 193 12 24 42 1150 £3.93 £3.54 INC. VAT £4.24
Qty Price
20+ £3.36 INC. VAT £4.03
50+ £3.18 INC. VAT £3.82
14 In stock

This 10mm A4 stainless steel captive pin dee shackle provides a strong, corrosion resistant connection for heavy general purpose rigging, marine hardware, and outdoor structural applications. The captive pin remains permanently attached, eliminating the risk of losing the pin during installation or when working over water.

Constructed from A4 (316) stainless steel, it delivers outstanding resistance to rust, pitting, and saltwater corrosion. The dee profile ensures stable straight line loading, making it suitable for tension based systems, chain assemblies, and architectural installations.

Compared with bow shackles, the dee design offers better alignment for inline loads, while the captive pin adds reliability for equipment that is frequently opened or adjusted.

Typical Uses

  • Heavy marine rigging and deck hardware
  • Architectural wire rope and tension systems
  • Outdoor structural fixings and load distribution
  • Chain and rope terminations requiring secure pin retention

Key Benefits

  • Captive pin ensures the shackle remains complete
  • A4 stainless steel provides extreme corrosion resistance
  • Ideal for heavy inline loading applications
  • Durable, stable, and suitable for long term outdoor exposure

Specifications

  • Size: 10mm
  • Material: A4 Stainless Steel (316 Marine Grade)
  • SKU: 12355
MATERIAL
MATERIAL A4 STAINLESS

Click the image to Download Datasheets
