Stainless steel Quick Link Delta

Delta Quick Links in various sizes
Dimensions: Ranging from size 4 to 10 mm
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P1480

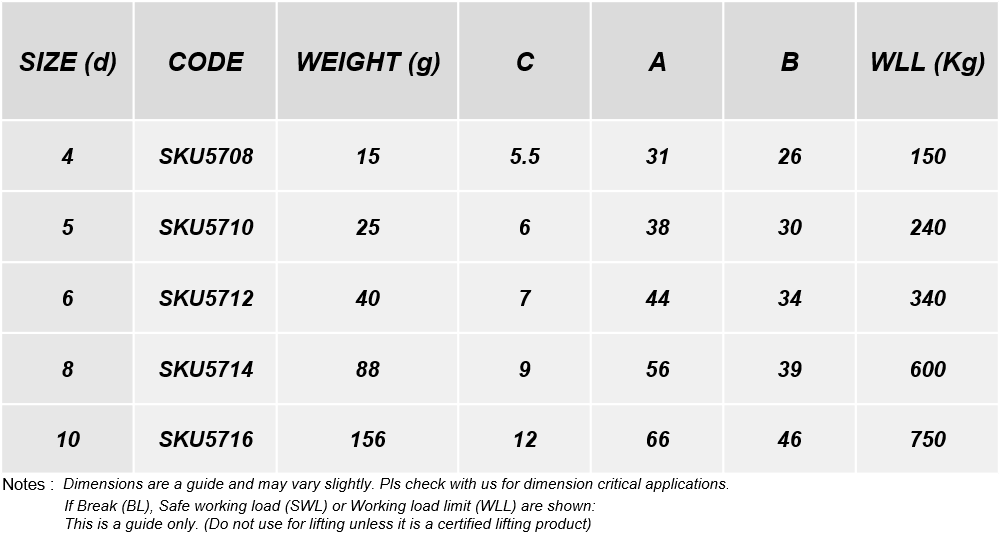

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

Click below for an engineering drawing :

Product Information :

Stainless Steel Quick Link Delta

Delta Quick Links are particularly suited for use with straps and installations having three-directional load points. Also used in activities such as slack-lining. Made fromm 316 Stainless Steel. Available in sizes 4-10mm.
Other names for this product: Screw Link, Traingular Link
