Stainless Steel Double Swivel Anchor Connector

Double swivel anchor connectors in 2 sizes
Dimensions: Small size for 6 to 8mm diameter chain. Large size for 10 to 13mm Diameter chain.
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P2840

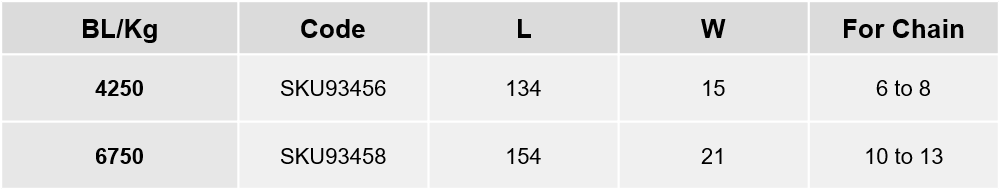

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

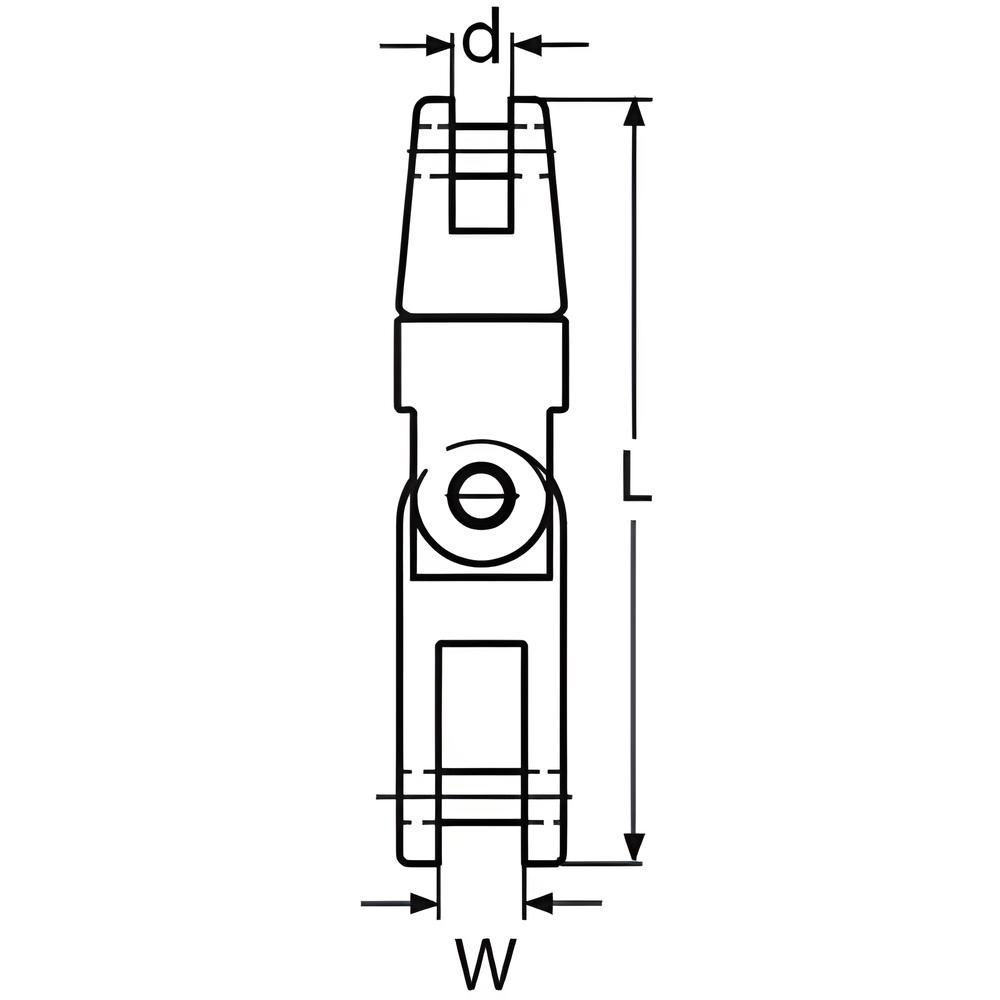

Click below for an engineering drawing :

Product Information :

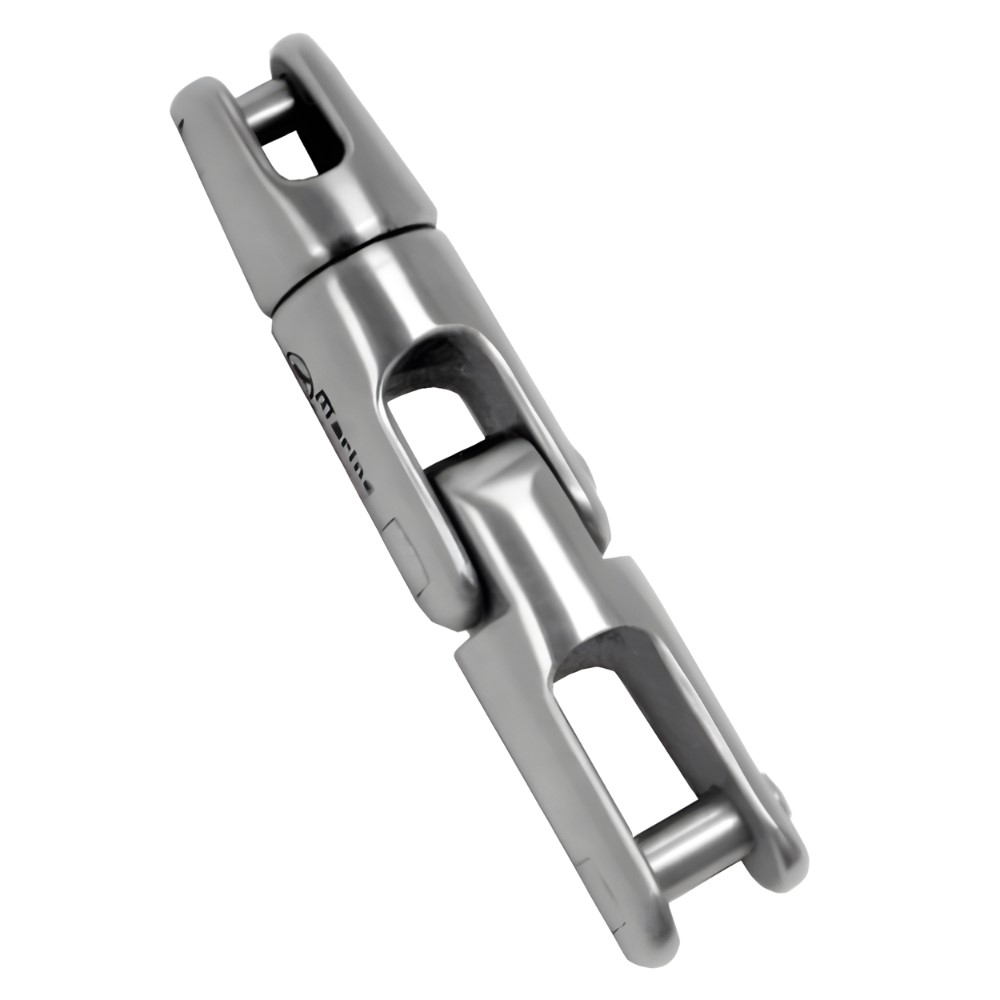

Stainless Steel Double Swivel Anchor Connector

This type of swivel connector swivels in 2 places allowing excellent freedom of movement of the anchor at its connection point
Other names for this product: Anchor Swivel

MATERIAL
MATERIAL:
