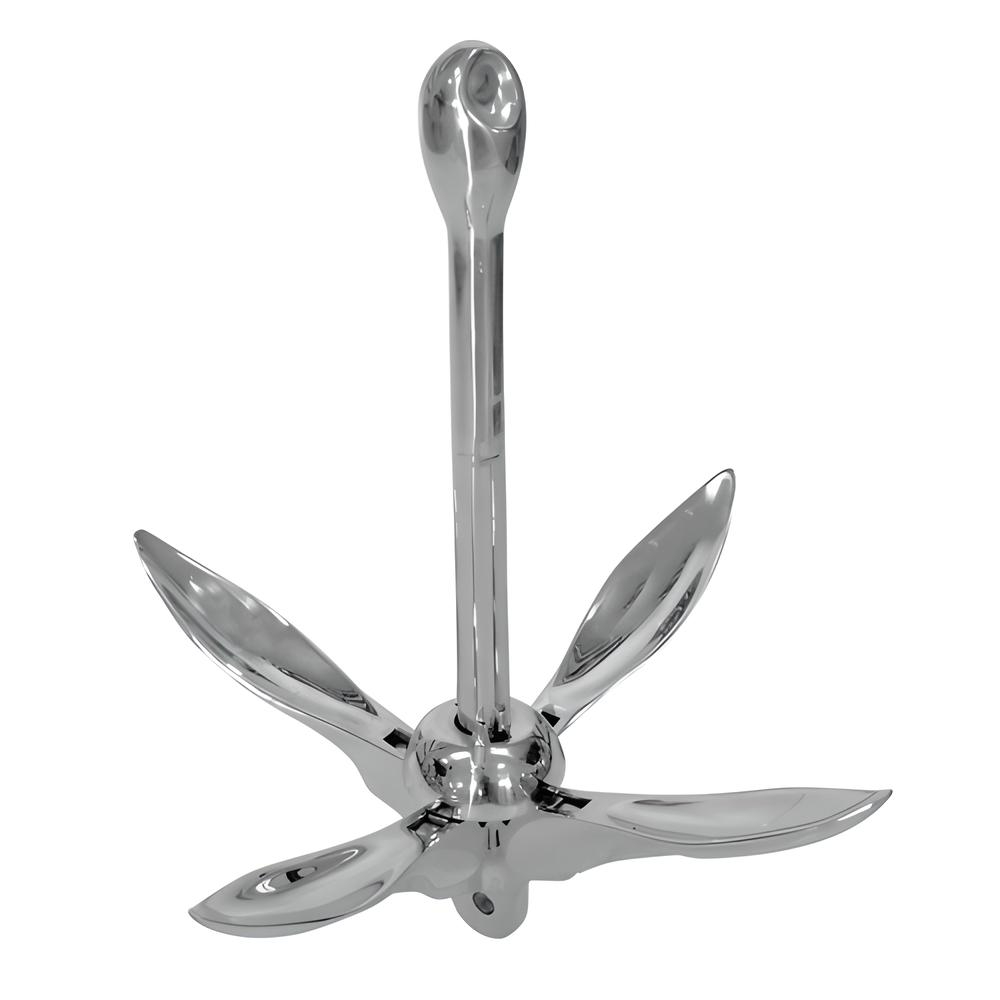

Stainless Steel Folding Anchor

Folding anchors in various sizes
Dimensions: Ranging from 1.5kg up to 4kg
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P2820

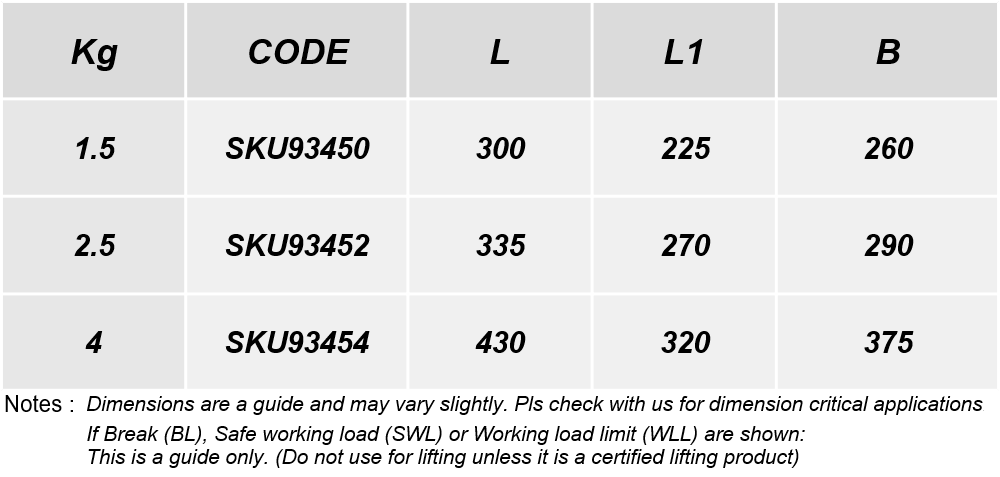

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

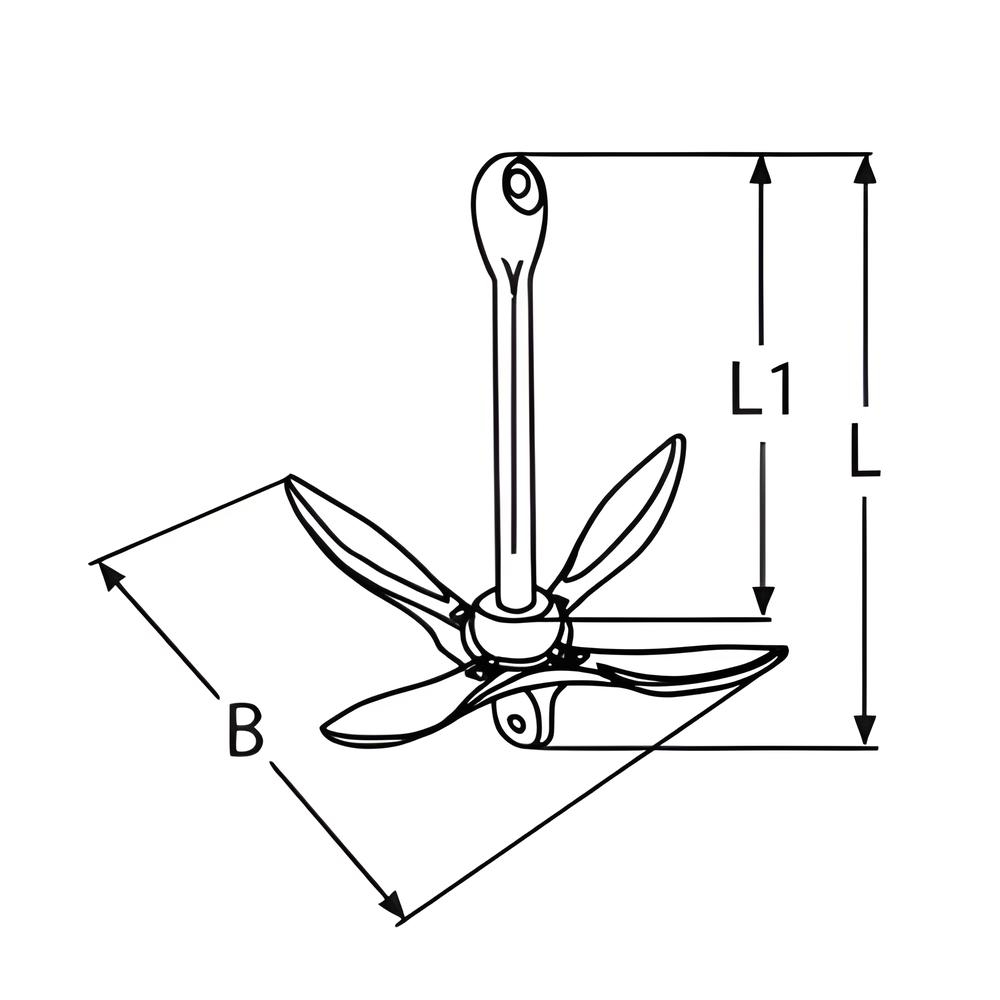

Click below for an engineering drawing :

Product Information :

Stainless Steel Folding Anchor

These types of anchor are generally used where there is not much space and also where only a light temporary anchoring is required. Made in 316 stainless, they are well suited to the Marine environment
Other names for this product: Grapnel Anchor, Boat Anchor

MATERIAL
MATERIAL:
