Stainless steel Eye and Jaw Swivel

Eye and Jaw Swivels in various sizes
Dimensions: Ranging from 5 to 19mm
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P860

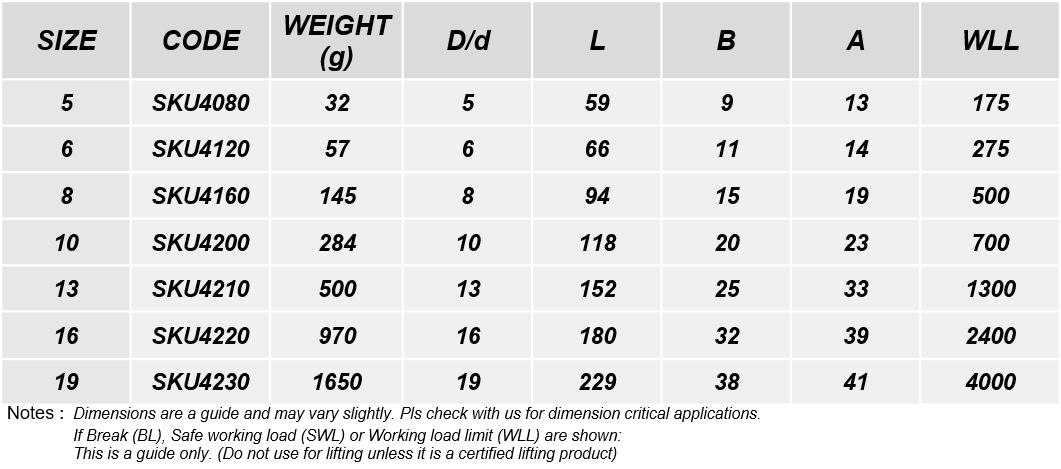

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing :

Product Information :

Stainless Steel Eye and Jaw Swivel

Swivels are useful for use with anchor lines and gym equipment. Our range in 316 Stainless Steel make them especially suited to
outdoors and marine environments. Available in sizes 5-19mm.
Other names for this product: Anchor Swivel, Marine Swivel

MATERIAL
MATERIAL: A4 STAINLESS
