Stainless steel Fork to Fork Open Body Turnbuckle

Open Body Turnbuckle Jaw to Jaw in various sizes
Dimensions: Ranging from M5 to M20
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P620

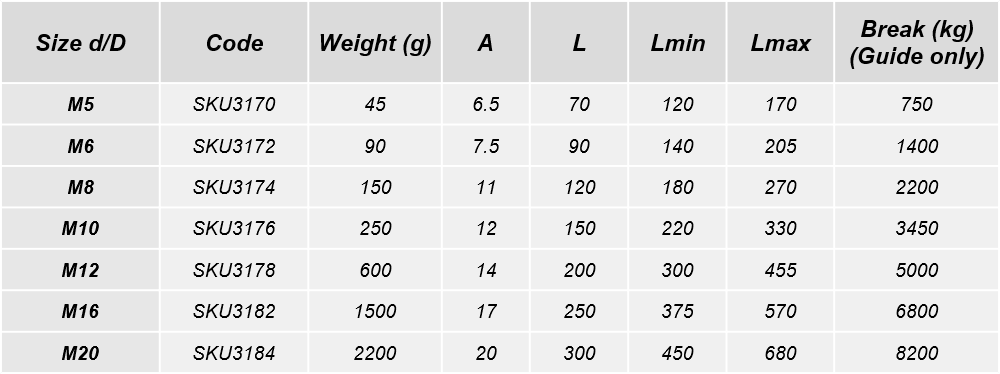

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

Click below for an engineering drawing :

Product Information :

Stainless Steel Fork to Fork Open Body Turnbuckle

A Turnbuckle is a wire rope tensioner or adjuster. This affordable range is ideal for construction and horticultural installations such
as catenary wires, rigging, fencing, sail shades. You tighten the wire by rotating the frame of the Turnbuckle. This is useful both at installation and in routine maintenance. Available in sizes M5 to M20. Made from 316 Stainless Steel.
Other names for this product: Jaw Jaw, Bottle Screw, Rigging Screw, Straining Screw, Barrel Strainer, Tensioner, Adjuster

MATERIAL
MATERIAL: A4 STAINLESS
