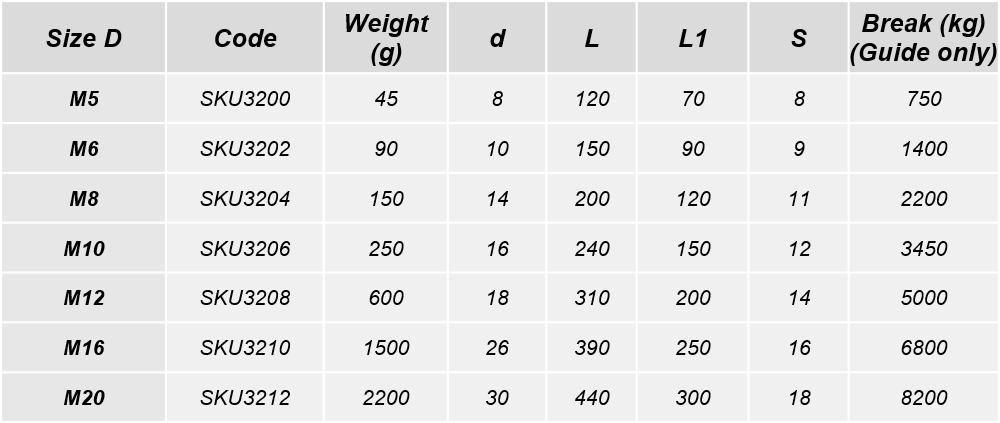

|Chart showing dimensions for all sizes in mm : |
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.
|Click below for an Engineering drawing |
| Where WLL or Break load are shown : |
WLL = working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load: This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. For load bearing or lifting applications you should have the part or assembly tested and certified. Contact us if you require this)
Product Information :
Stainless Steel Eye to Hook Open Body Turnbuckle
A Turnbuckle is a wire rope tensioner or adjuster. This affordable range is ideal for construction and horticultural installations such
as catenary wires, rigging, fencing, sail shades. You tighten the wire by rotating the frame of the Turnbuckle. This is useful both at installation and in routine maintenance. Available in sizes M5 to M20. Made from 316 Stainless Steel.
Other names for this product: Bottle Screw, Rigging Screw, Straining Screw, Barrel Strainer, Tensioner, Adjuster
