Stainless Steel U Bolt Angled Head

Stainless steel u bolt with angled head in 6 sizes
Dimensions: 3 different angles over M8 and M10 bolts
Material: A4 Stainless

Click the option box to choose size

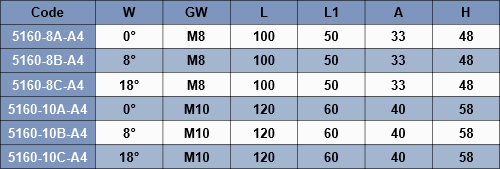

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Stainless Steel U Bolt Angled Head

This style of U bolt is usefull where the angled head can follow the direction of pull , making it able to resist higher loads
Other names for this product: Pipe Bolt, Tube Bolts, U Clamp Bolts
