Stainless steel Snap Hook with Eyelet

Snap Hook with Eyelets in various sizes
Dimensions: Ranging from 50 to 120mm long
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P900

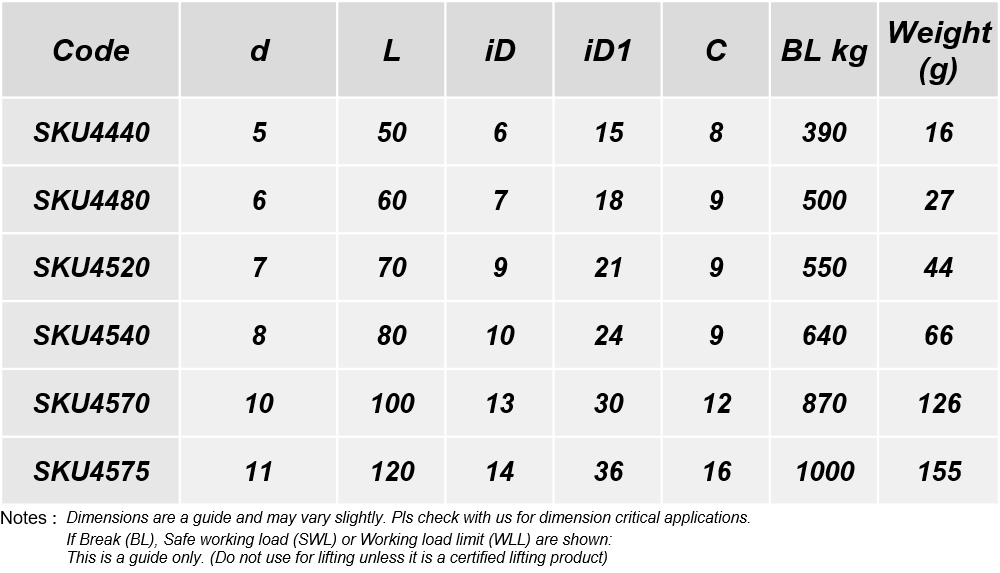

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

Click below for an engineering drawing :

Product Information :

Stainless Steel Snap Hook with Eyelet

Snaphooks or Carabiners, are one of the quickest fit, most versatile fasteners. With a spring-loaded gate that opens inwards.
Can be operated single-handedly. Fantastic for marine applications as they are made in 316 Stainless Steel. Not advised for climbing purposes. Available in sizes 5-11mm.
Other names for this product: Carabiner with Eyelet, Spring Hook with Eyelet, Carbine Hook with Eyelet
