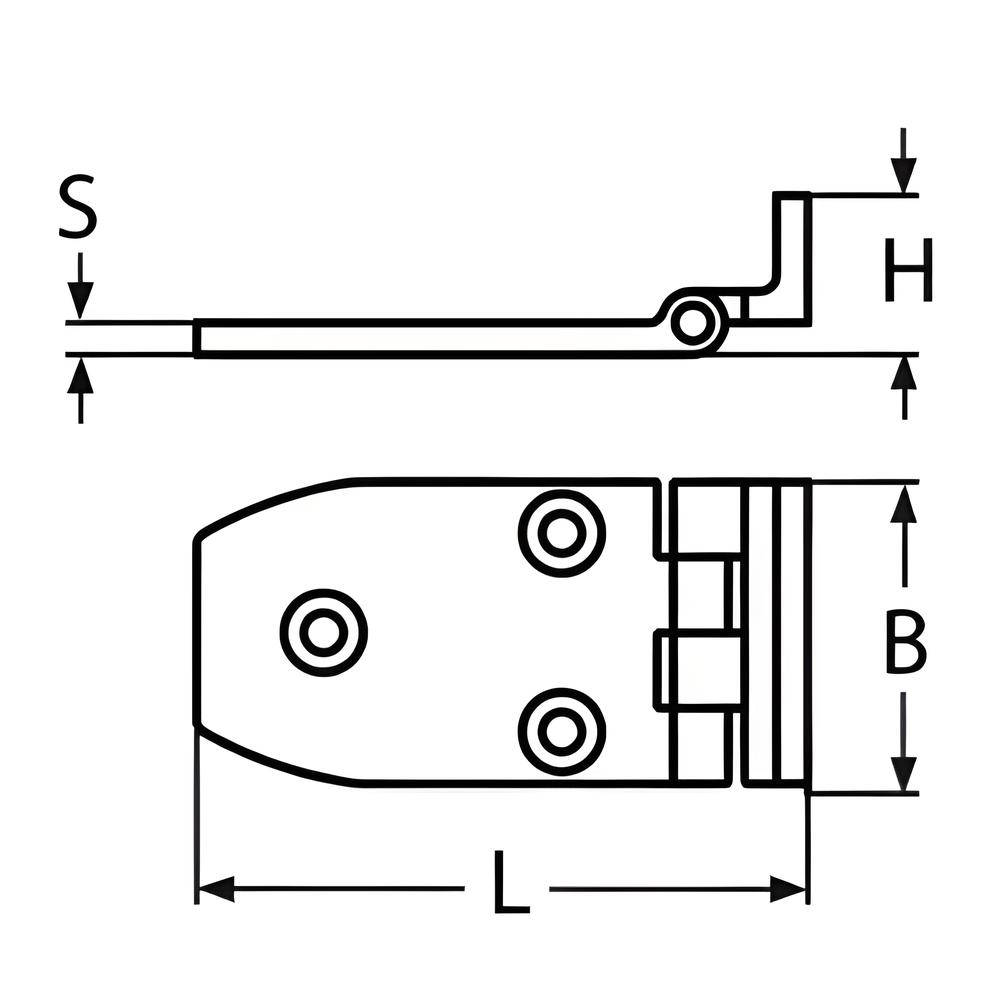

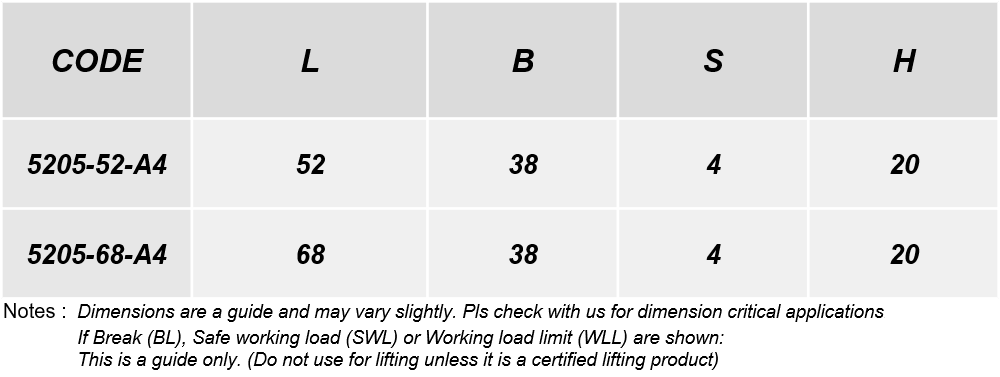

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :

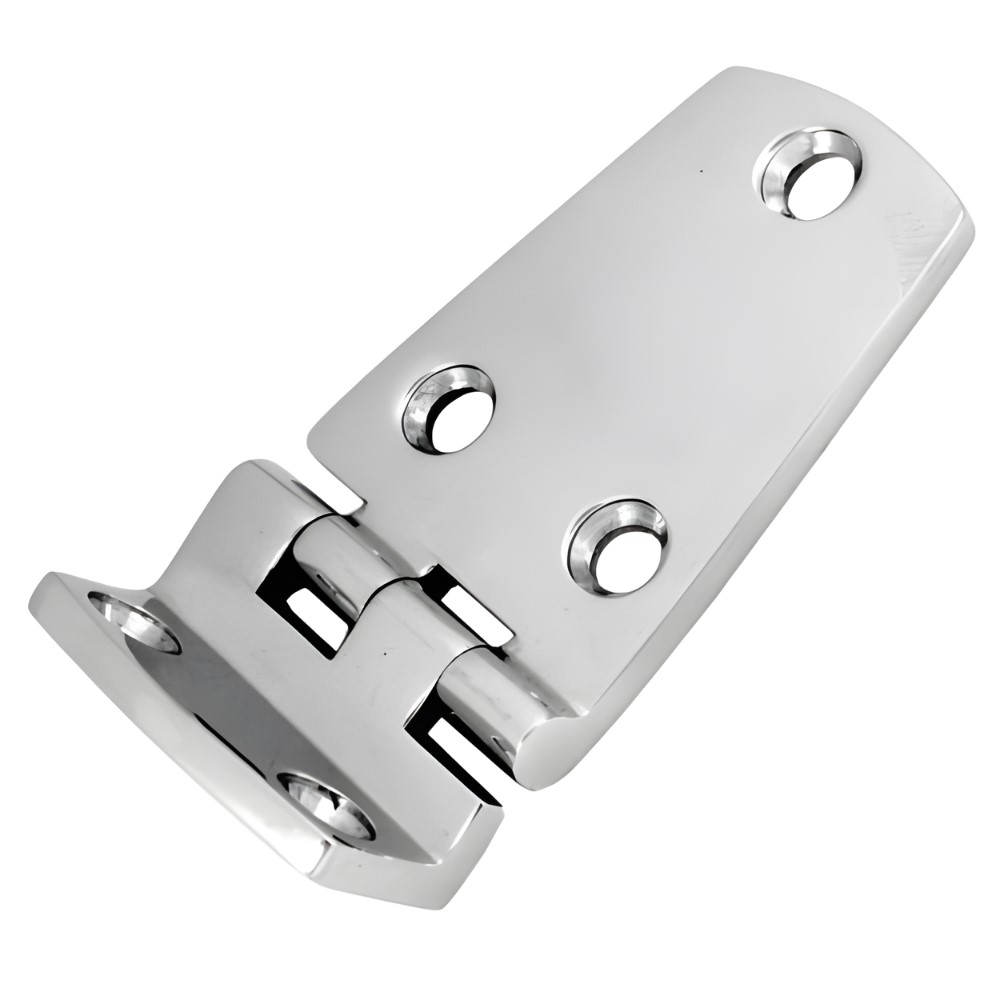

Stainless Steel Offset Hinge
The design of the offset hinge moves the pin of the hinge further away from the frame. This allows the door to be set back further to create a wider opening and therefore making more space.
Other names for this product: Door Hinge, Hatch Hinge, Strap Hinge
Click the image to Download Datasheets
