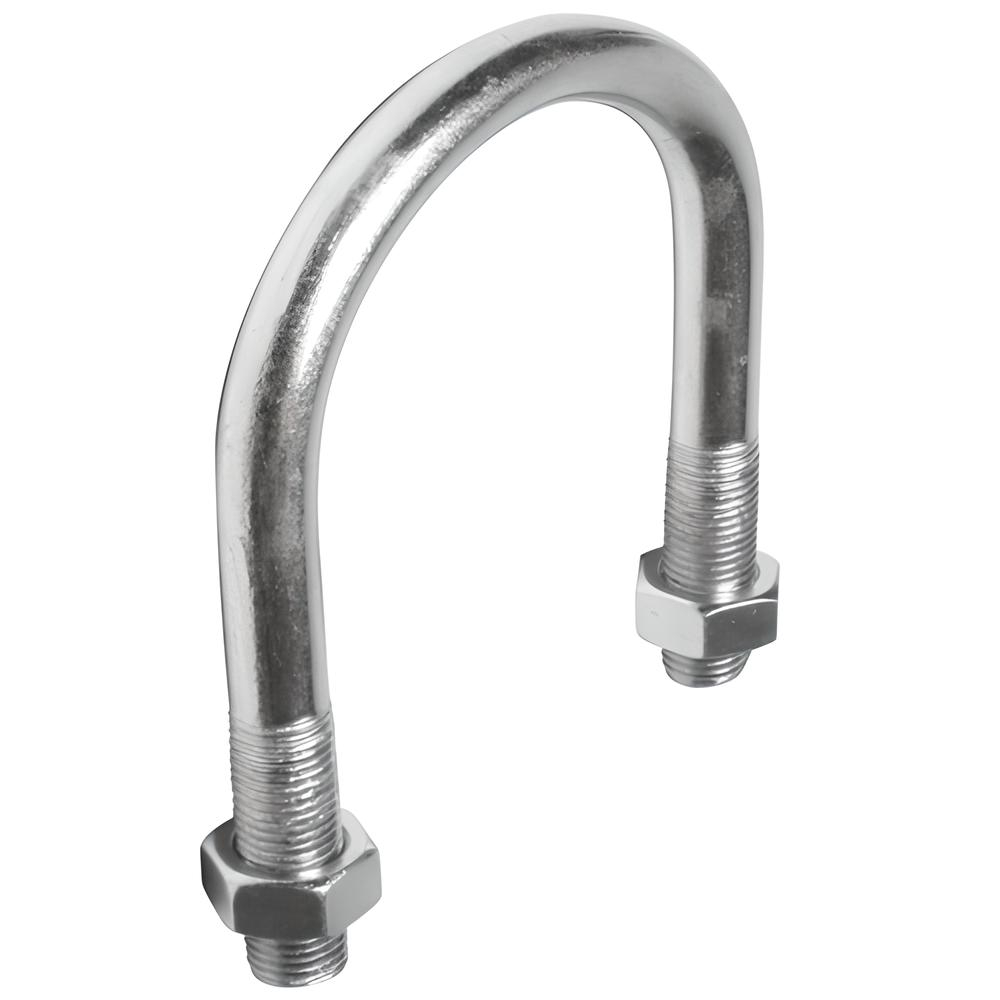

U Bolt without Plate - Zinc plated
U Bolt without Plate - Zinc plated U Bolt without Plate - Zinc plated
U Bolt without Plate - Zinc plated
Light pattern U bolts for many different pipe sizes. Nominal pipe size - 15mm(0.5"), 20mm(3/4"), 25mm(1"), 32mm(1.25"), 40mm(1.5"), 50mm(2"), 65mm(2.5"), 80mm(3"), 100mm(4"), 125mm(5"), 150mm(6"), 200mm(8"). Manufactured in steel and electro galvanised with a zinc plating, which gives moderate protection against corrosion. Note : Better corrosion resistance is available in our Hot dip galvanised or stainless varieties. These U-bolts are supplied with nuts. The Thread is rolled which means the diameter of the bar is slightly smaller than the thread.
Price per : Pack of 1
Further stock is available subject to a small lead time. Contact us for a quote.

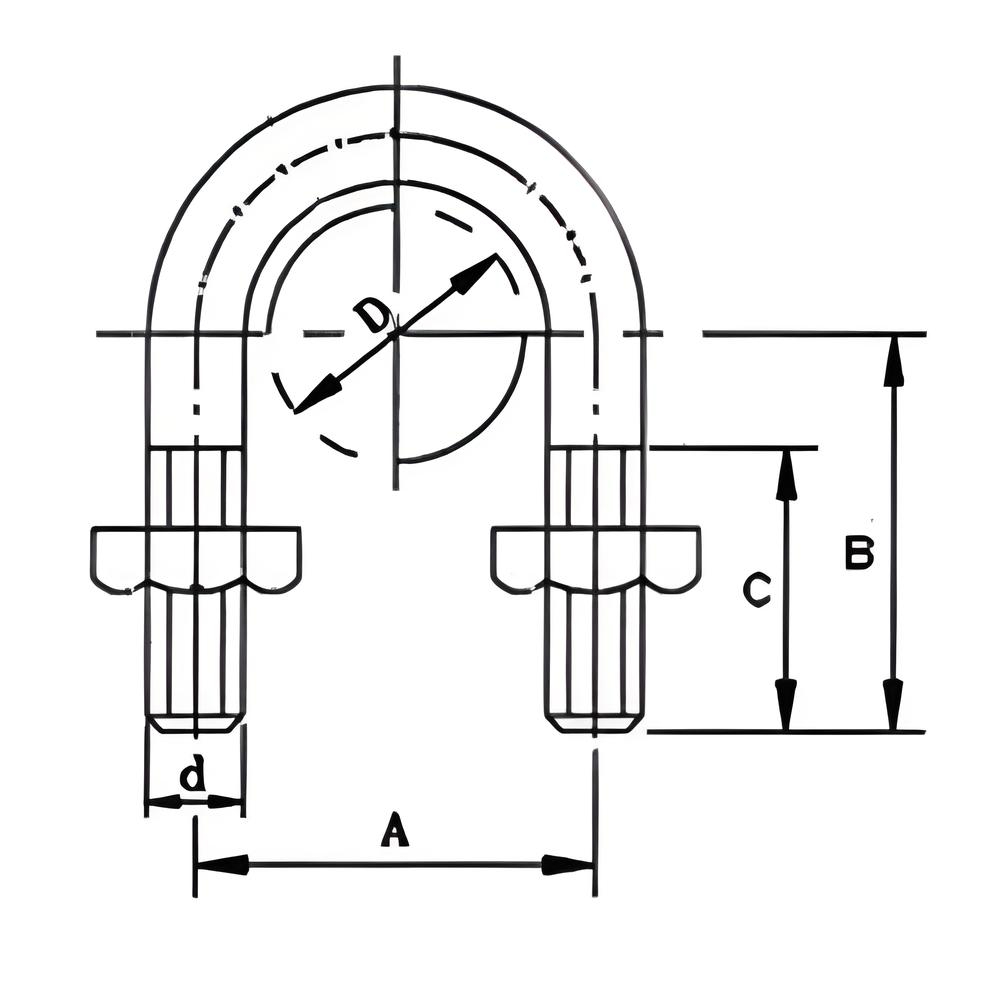

Option Nominal pipe size (ID) Inches Metric PipeOD (D)mm (Ref.) Part no. Weight (g) A B C d Price Qty
Nominal pipe Size 15mm (Pipe OD 21.3mm) U bolt UBLP15-BZP 0.5 15mm 21.3 UBLP15-BZP 20 28 31 20 M6 £0.00 INC. VAT £0.00
100 In stock
Nominal pipe Size 20mm (Pipe OD 26.9mm) U bolt UBLP20-BZP 0.75 20mm 26.9 UBLP20-BZP 20 34 39 30 M6 £0.00 INC. VAT £0.00
100 In stock
Nominal pipe Size 25mm (Pipe OD 33.7mm) U bolt UBLP25-BZP 1 25mm 33.7 UBLP25-BZP 30 41 43 30 M6 £0.00 INC. VAT £0.00
50 In stock
Nominal pipe Size 32mm (Pipe OD 42.4mm) U bolt UBLP32-BZP 1.25 32mm 42.4 UBLP32-BZP 90 54 45 30 M10 £0.00 INC. VAT £0.00
50 In stock
Nominal pipe Size 40mm (Pipe OD 48.3mm) U bolt UBLP40-BZP 1.5 40mm 48.3 UBLP40-BZP 110 60 60 35 M10 £1.05 INC. VAT £1.26
Qty Price
20+ £1.00 INC. VAT £1.20
50+ £0.95 INC. VAT £1.13
42 In stock
Nominal pipe Size 50mm (Pipe OD 60.3mm) U bolt UBLP50-BZP 2 50mm 60.3 UBLP50-BZP 130 75 63 35 M10 £1.21 INC. VAT £1.45
Qty Price
20+ £1.15 INC. VAT £1.38
50+ £1.09 INC. VAT £1.31
174 In stock
Nominal pipe Size 65mm (Pipe OD 76.1mm) U bolt UBLP65-BZP 2.5 65mm 76.1 UBLP65-BZP 230 90 85 35 M12 £0.00 INC. VAT £0.00
50 In stock
Nominal pipe Size 80mm (Pipe OD 88.9mm) U bolt UBLP80-BZP 3 80mm 88.9 UBLP80-BZP 240 102 81 55 M12 £0.00 INC. VAT £0.00
50 In stock
Nominal pipe Size 100mm (Pipe OD 114.3mm) U bolt UBLP100-BZP 4 100mm 114.3 UBLP100-BZP 280 131 85 50 M12 £0.00 INC. VAT £0.00
Sold out. Call 01903331391
Nominal pipe Size 125mm (Pipe OD 139.7mm) U bolt UBLP125-BZP 5 125mm 139.7 UBLP125-BZP 340 156 110 50 M12 £0.00 INC. VAT £0.00
Sold out. Call 01903331391
Nominal pipe Size 150mm (Pipe OD 168.3mm) U bolt UBLP150-BZP 6 150mm 168.3 UBLP150-BZP 390 182 125 50 M12 £3.47 INC. VAT £4.16
100 In stock
***Nominal pipe Size 200mm (Pipe OD 219.1mm) U bolt UBLP200-BZP 8 200mm 219.1 UBLP200-BZP 870 240 140 50 M16
Special order item, please call 01903 331401 for price
Sold out. Call 01903331391

The 8" BZP U bolt is built for securing 219.1mm OD pipe in heavy industrial, mechanical and structural systems. The M16 thread provides exceptional strength for large diameter pipe support and high load installations.

It's suited to plant equipment, industrial pipe runs and major structural bracing where maximum reliability is required.

Typical Uses

  • Very large industrial pipe support
  • Heavy structural bracing
  • Plant and process infrastructure
  • High load tube and pipe assemblies

Key Benefits

  • Bright zinc plated finish for corrosion protection
  • Heavy duty M16 thread for high load applications
  • Suitable for 219.1mm OD pipe
  • Reliable in demanding industrial and structural environments

Specifications

  • Product: U Bolt Without Plate
  • Nominal Pipe Size: 8"
  • Pipe OD: 219.1mm
  • Thread Size: M16
  • SKU: UBLP200 BZP
