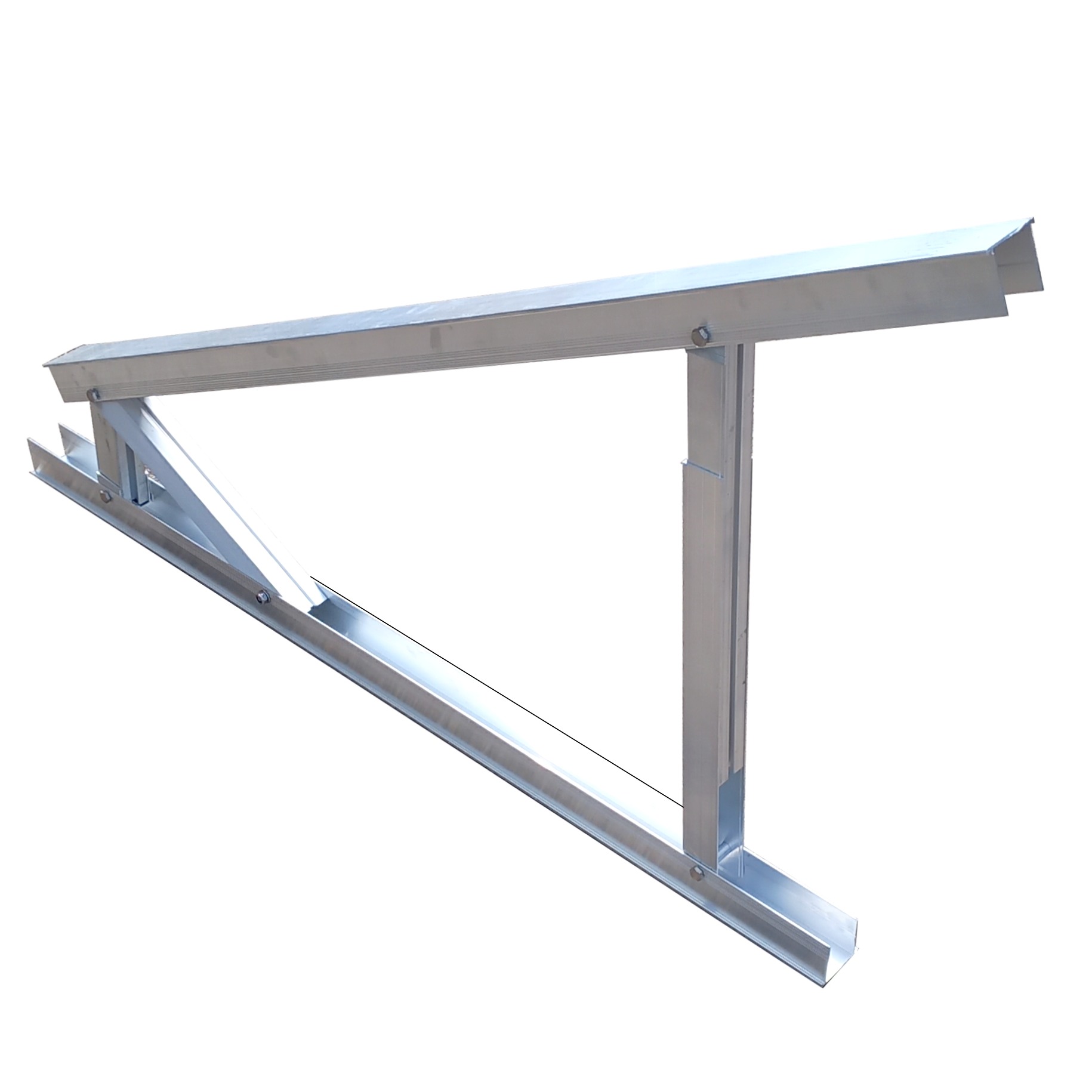

This adjustable flat roof mounting frame provides a stable, angled support structure for solar PV modules, allowing the panel tilt to be set anywhere between 20� and 40�. Built from lightweight aluminium, the frame offers strong structural performance while remaining easy to handle on rooftops. Its corrosion resistant construction makes it suitable for long term outdoor exposure in residential and commercial environments.
The adjustable design allows installers to optimise panel angle for seasonal performance, roof orientation or site specific energy requirements. The frame assembles quickly using standard fixings and provides a secure, rigid base once locked into position. It is ideal for flat roofs where a fixed tilt bracket would not provide the required flexibility.
Typical Uses

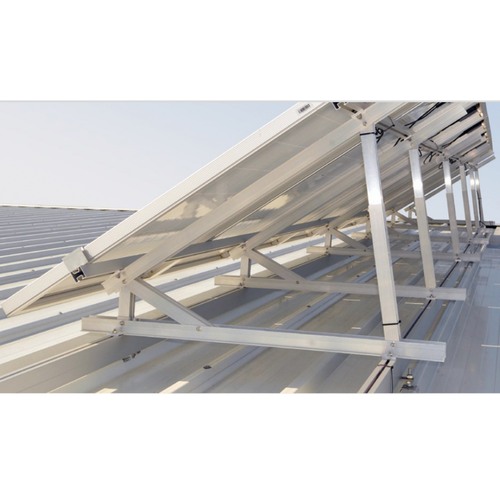

- Flat roof solar PV installations
- Systems requiring adjustable tilt for improved energy yield
- Commercial and residential flat roof arrays
- Installations where lightweight aluminium framing is preferred
Key Benefits
- Adjustable tilt range from 20� to 40�
- Lightweight aluminium for easy handling and strong rigidity
- Corrosion resistant for long term outdoor use
- Flexible angle adjustment to suit site conditions
- Quick assembly with standard solar mounting hardware

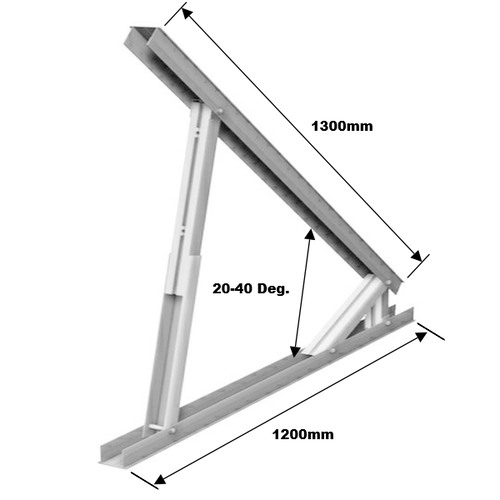

Specifications
- Tilt Range: 20�-40�
- Material: Aluminium
- Type: Adjustable Flat Roof Mounting Frame
- SKU: SOST-FR-ADJ-AL
| MATERIAL |
| MATERIAL |
ALUMINIUM
|
