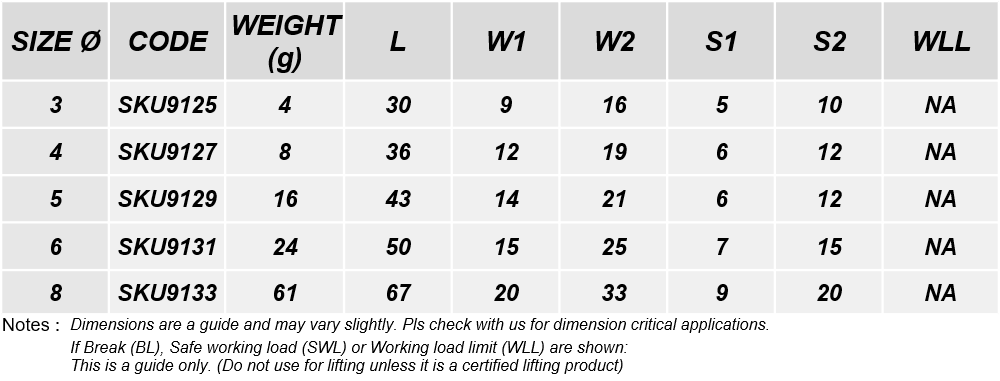

Chart showing dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances. Where WLL or Break load are shown : SWL or WLL = Safe working load limit (kg) :
For "dimension sensitive" applications pls ask for measurement.
This is the recommended maximum weight the product should carry and will vary from batch to batch. Break Load :
This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)
Click below for an engineering drawing :
Product Information :
Stainless Steel S Hook Asymmetrical
This product is perfect for hanging applications small to medium weight objects. This part does not have a Load Limit, and should not be used for lifting.
Required. It has a much larger opening at the bottom compared with the Standard S Hook.
Made in 316 Stainless Steel. Available in 5 sizes, ranging from 3-8mm, and in bulk quantity packs.
Other names for this product: S Loops, Hanging Hooks, Kitchen Hooks
