U Bolt Angled Head - 316 Stainless steel
U Bolt Angled Head - 316 Stainless steel U Bolt Angled Head - 316 Stainless steel
U Bolt Angled Head - 316 Stainless steel
stainless steel u bolt with angled head - specified in sizes M8 and M10 with head angles of 0 degrees, 8 degrees and 18 degrees. When used as a deck fitting with rope, it allows the rope to pull on the U bolt as close as possible to a parrallel, avoiding unnecessary sideways force.
Price per : Pack of 1
Further stock is available subject to a small lead time. Contact us for a quote.

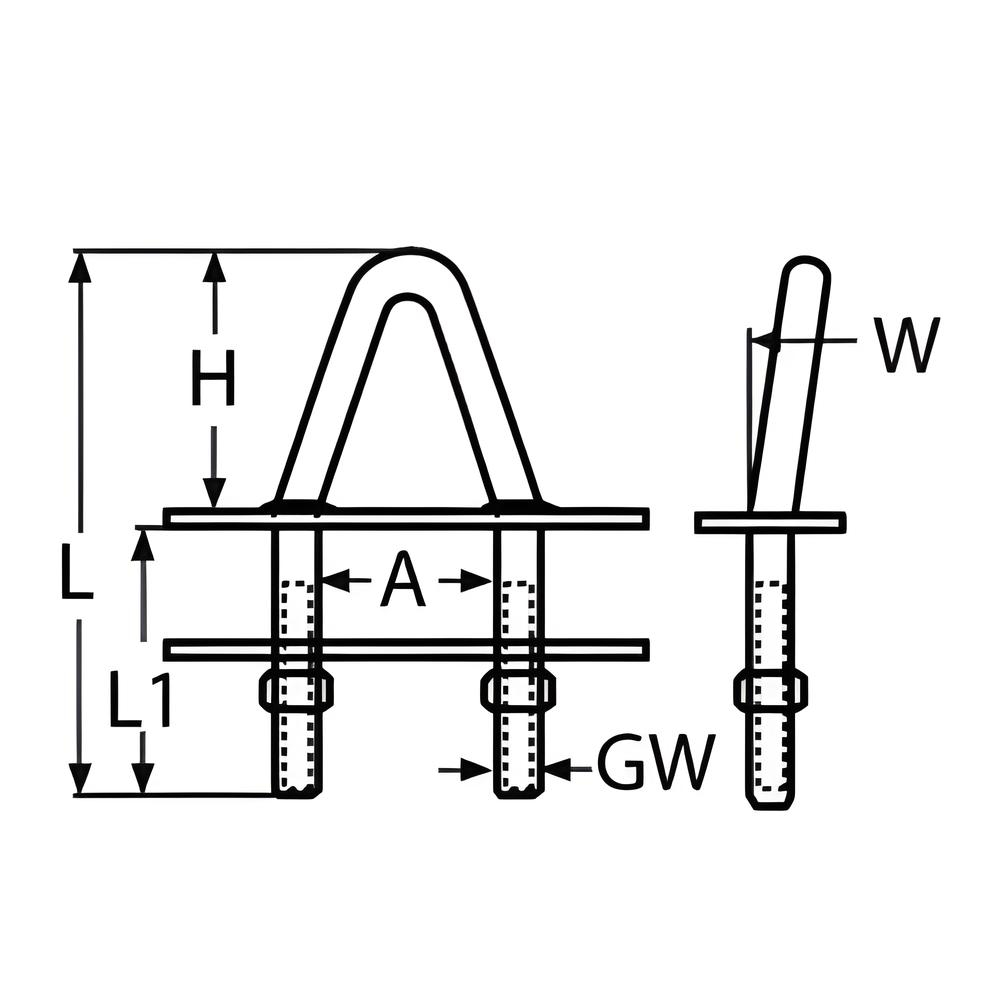

Option MATERIAL Code W GW L L1 A H Price Qty
M8 0 degrees u bolt with angled head 5160-8A-A4 A4 STAINLESS 5160-8A-A4 0 Deg. M8 100 50 33 48 £9.03 INC. VAT £10.84
Qty Price
10+ £8.58 INC. VAT £10.29
20+ £8.13 INC. VAT £9.75
8 In stock
M8 8 degrees u bolt with angled head 5160-8B-A4 A4 STAINLESS 5160-8B-A4 8 Deg. M8 100 50 33 48 £10.29 INC. VAT £12.35
Qty Price
5+ £9.78 INC. VAT £11.73
10+ £9.26 INC. VAT £11.11
10 In stock
M8 18 degrees u bolt with angled head 5160-8C-A4 A4 STAINLESS 5160-8C-A4 18 Deg. M8 100 50 33 48 £10.71 INC. VAT £12.85
Qty Price
5+ £10.17 INC. VAT £12.21
10+ £9.64 INC. VAT £11.57
10 In stock
M10 0 degrees u bolt with angled head 5160-10A-A4 A4 STAINLESS 5160-10A-A4 0 Deg. M10 120 60 40 58 £9.45 INC. VAT £11.34
Qty Price
10+ £8.98 INC. VAT £10.77
20+ £8.51 INC. VAT £10.21
7 In stock
M10 8 degrees u bolt with angled head 5160-10B-A4 A4 STAINLESS 5160-10B-A4 8 Deg. M10 120 60 40 58 £11.03 INC. VAT £13.23
Qty Price
5+ £10.47 INC. VAT £12.57
10+ £9.92 INC. VAT £11.91
17 In stock
M10 18 degrees u bolt with angled head 5160-10C-A4 A4 STAINLESS 5160-10C-A4 18 Deg. M10 120 60 40 58 £11.50 INC. VAT £13.80
Qty Price
5+ £10.92 INC. VAT £13.11
10+ £10.35 INC. VAT £12.42
15 In stock

The M10 18� angled head U bolt is engineered for installations requiring a steep offset, allowing the U bolt to sit correctly on sharply angled or curved mounting surfaces. Made from A4 (316) stainless steel, it offers exceptional resistance to saltwater, chlorides and long term outdoor exposure.

The 18� head angle ensures precise alignment where standard U bolts cannot sit flush, making it ideal for specialist marine, offshore and industrial applications.

Typical Uses

  • Marine and offshore pipe systems
  • Mounting to steep or curved surfaces
  • Outdoor structural and equipment installations
  • Engineering applications requiring precise alignment

Key Benefits

  • A4 (316) stainless steel for extreme corrosion resistance
  • 18� angled head for steep or curved mounting surfaces
  • Strong M10 thread for high load applications
  • Reliable in harsh marine and industrial environments

Specifications

  • Product: Angled Head U Bolt
  • Angle: 18�
  • Thread Size: M10
  • Material: A4 Stainless Steel
  • SKU: 5160 10C A4
MATERIAL
MATERIAL A4 STAINLESS

Click the image to Download Datasheets
