Stainless steel Wire Rope 1x19
Wire Rope 1x19 in various widths
Dimensions: 2 to 10mm diameter
Material: A4 Stainless
Click the option box to choose size

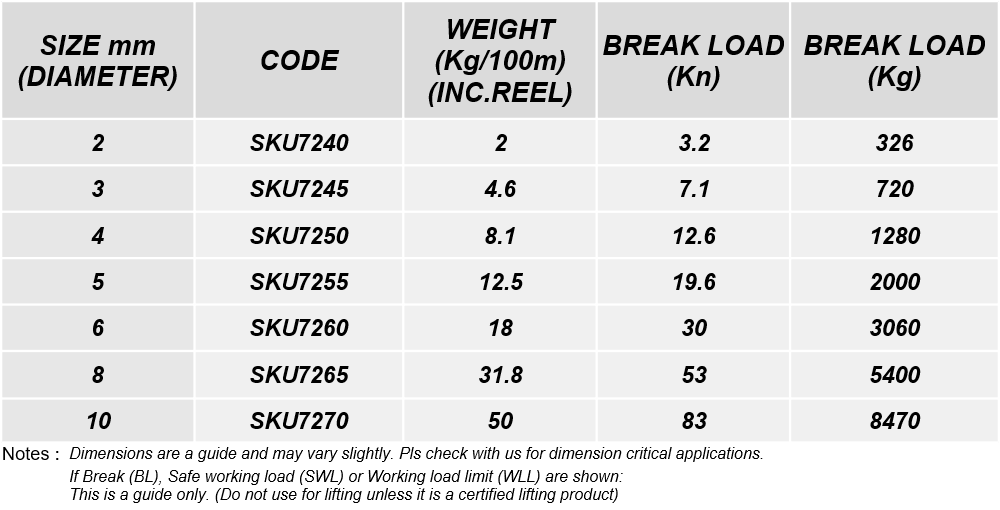

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Stainless Steel Wire Rope 1x19

1x19 Wire Rope is designed primarily for standing rigging on boats, bracing and other non-flexible requirements. Use with our selection of Swage Terminals. Made from 316 Stainless Steel. Available in sizes 2-10mm.
Other names for this product: Wire Cable, Balustrade Wire, Wire Rope for Shrouds
