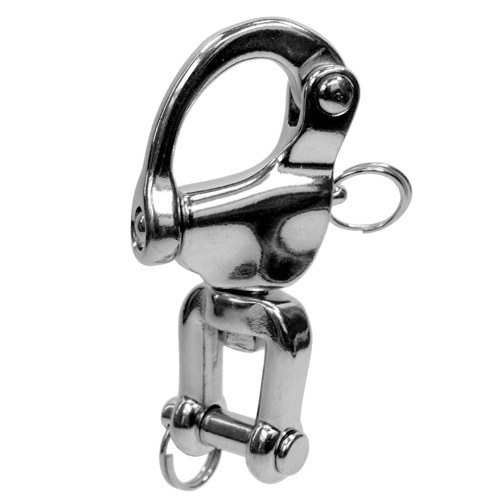

Stainless steel Snap Shackle - Jaw Head

Round Head Snap Shackle in various sizes
Dimensions: Ranging from 69-90 mm long
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

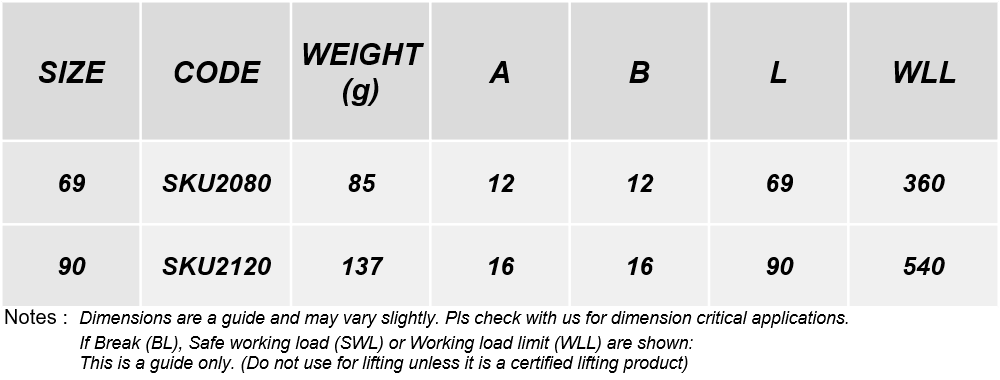

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

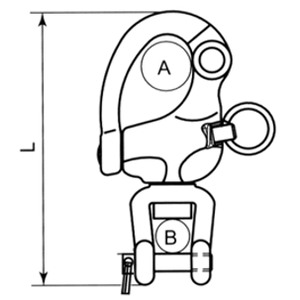

Click below for an engineering drawing :

Product Information :

Stainless Steel Snap Shackle - Jaw Head

A Snap Shackle is a fast application fastener � great in temporary use, or when moved or replaced often.
It uses a spring activated locking mechanism to close a hinged shackle,
which means it can be used single-handedly, and can be unfastened under load. It is an extremely useful shackle but should be used with the following caution: It is not as secure as other shackles,
due the nature of its opening. Also, when being used to release a significant load, the pin may be hard to release,
causing the pin assembly or split ring to fail. Features a removable clevis pin. Available in 2 sizes. Made from 316 Stainless Steel.
Other names for this product: Spinnaker Shackle, Retainer Shackle
