Stainless steel Dee Shackle - Countersunk Socket Pin - Forged
Dee Shackles with countersunk allen key socket pin in various sizes
Dimensions: Ranging from 5-22mm
Material: A4 Stainless
Click the option box to choose size

P80

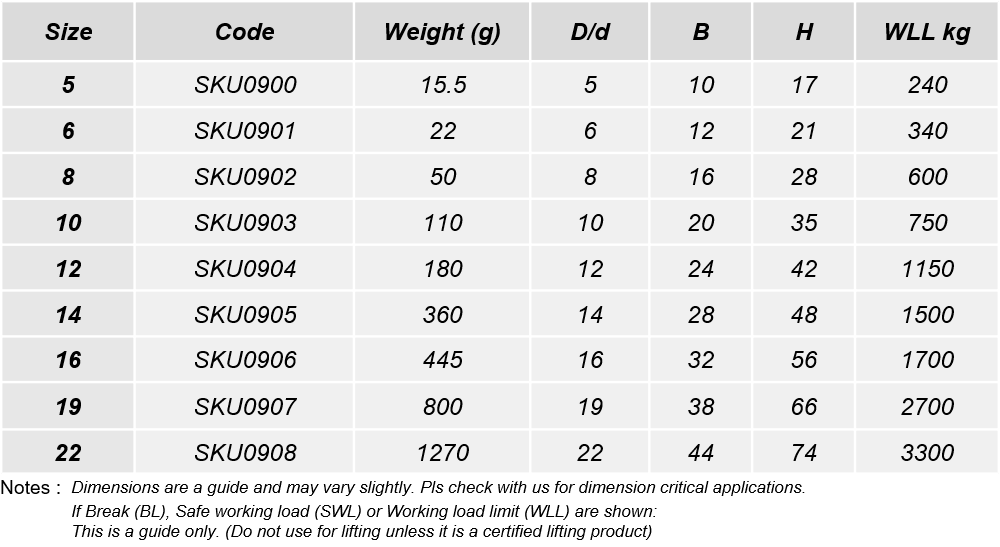

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Stainless Steel Dee Shackle - Countersunk Socket Pin - Forged

Part of our extensive shackle range. This type of Dee Shackle has a flush pin, with either a Slotted or Hex Head socket. This requires a tool for installation or removal, and is best suited to installations where the part is intended to stay in situ medium to long term.
Other names for this product: D, D Shackle, Lifting Shackle, Chain Shackle, Socket Pin Shackle

MATERIAL
MATERIAL: A4 STAINLESS
