Stainless steel Round Eye Plate with Hook

Round Eyeplate with hook in 3 different sizes
Dimensions: Small, medium and large
Material: A2 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P1640

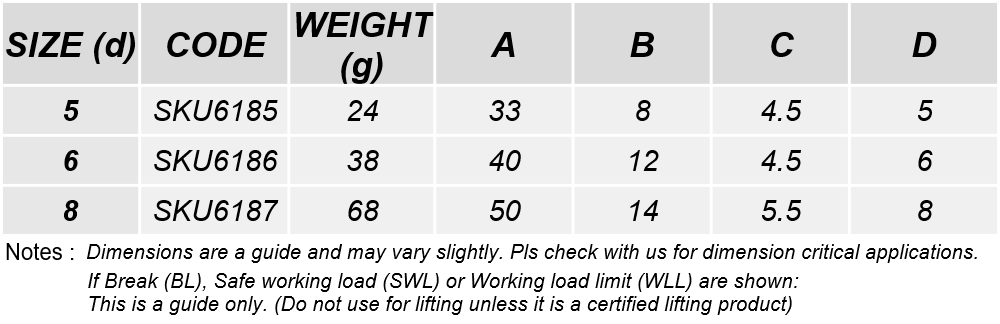

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Click below for an Engineering drawing

Where WLL or Break load are shown :
WLL = working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load:
  This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. For load bearing or lifting applications you should have the part or assembly tested and certified. Contact us if you require this)
Product Information :

Stainless Steel Round Eye Plate with Hook

A versatile eye plate, that allows you to attach chain or a fixed eyelet easily. Often used as anchor points for removable or temporary outdoor items, such as sail sun shades, gazebos, etc.
Made in 304 Stainless Steel. Available in 3 sizes.
Other names for this product: Hooked Eye Plate, Wall Hook
