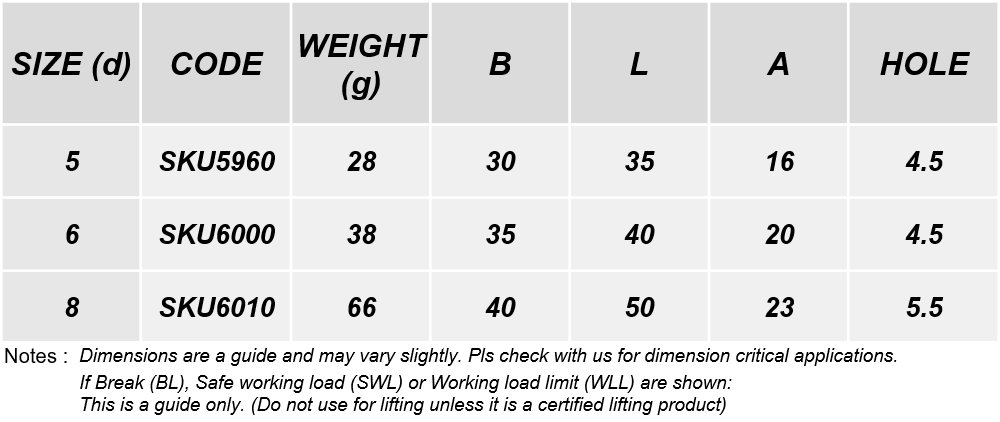

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Square Eye Plate
Square Eye Plates are one of five styles of eye plate fixings. Use them to fix chain, wire and rope to walls and posts. Made from 304 Stainless Steel. Available in 3 sizes.
Other names for this product: Pad Eye, Wall Eye, Eye Plate, Chain Plate
Click the image to Download Datasheets
