Stainless steel Dee Shackle - Captive Pin - Forged
Dee Shackles with captive pin in various sizes
Dimensions: Ranging from 4-12mm
Material: A4 Stainless
Click the option box to choose size

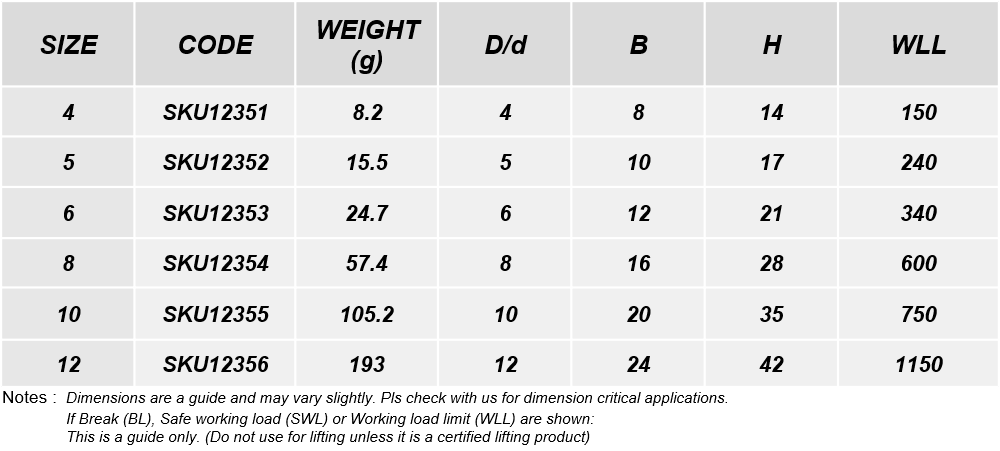

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

Click below for an engineering drawing

Product Information :

Stainless Steel Dee Shackle - Forged

Dee Shackles are best suited to bidirectional load situations, such as connection points on sails and with chain. This product comes in sizes 4-32mm. Made from 316 Stainless Steel. We now stock a large range of Dee Shackles, including wide, long and load rated.
Other names for this product: D, D Shackle, Lifting Shackle, Chain Shackle
