Stainless steel swivel Eye Plate
Swivel eyeplates in 3 different sizes
Dimensions: Small, medium and large
Material: A2 Stainless
Click the option box to choose size


Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

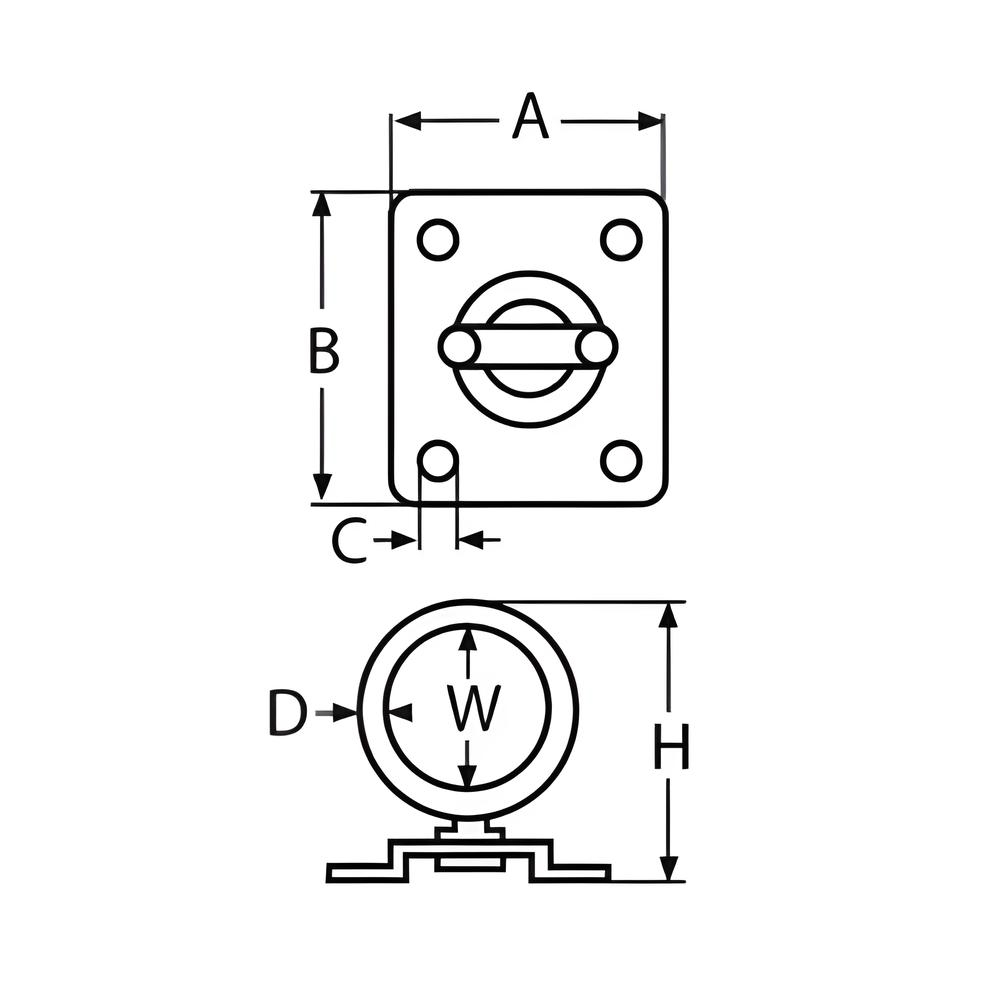

Click below for an engineering drawing

Product Information :

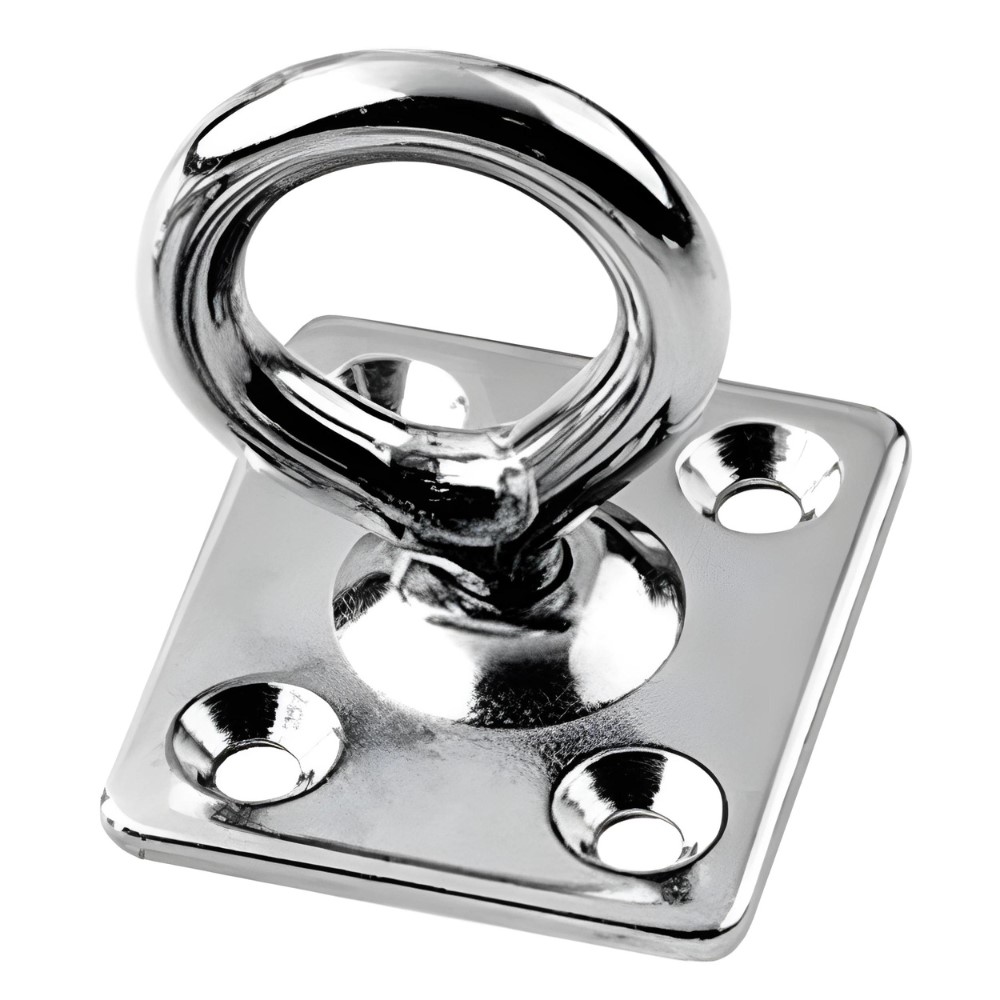

Stainless Steel swivel Eye Plate

Swivel Eye Plates are one of many styles of eye plate fixings. Use them to fix chain, wire and rope to walls and posts. The swivel helps prevent twisting. Made from 304 Stainless Steel. Available in 3 sizes.
Other names for this product: Pad Eye, Wall Eye, Eye Plate
