Stainless steel Fork Terminal

Fork Terminals in various sizes
Dimensions: Ranging from 2 to 16mm wire size
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P520

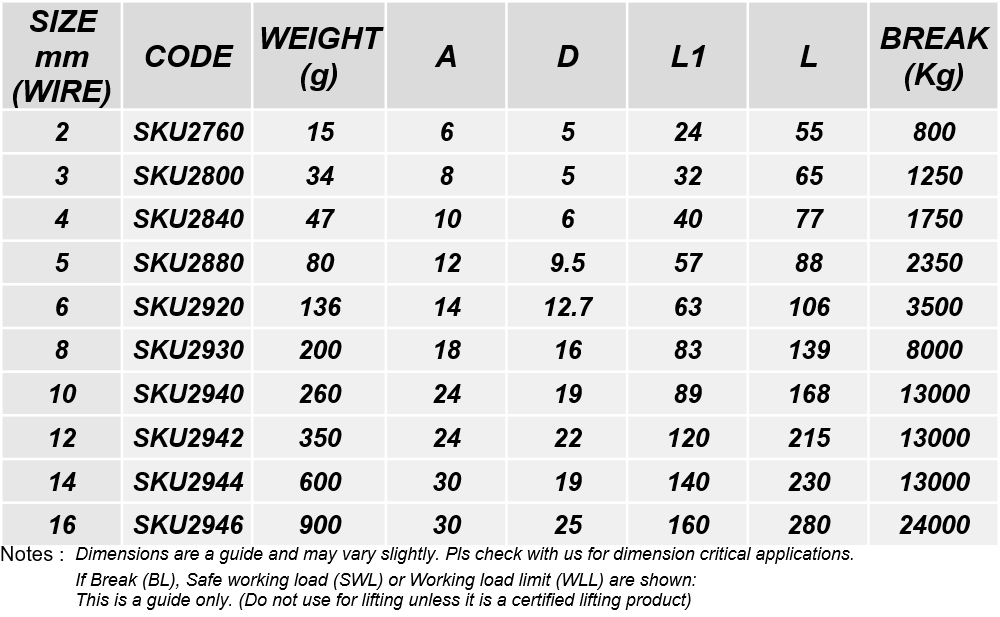

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

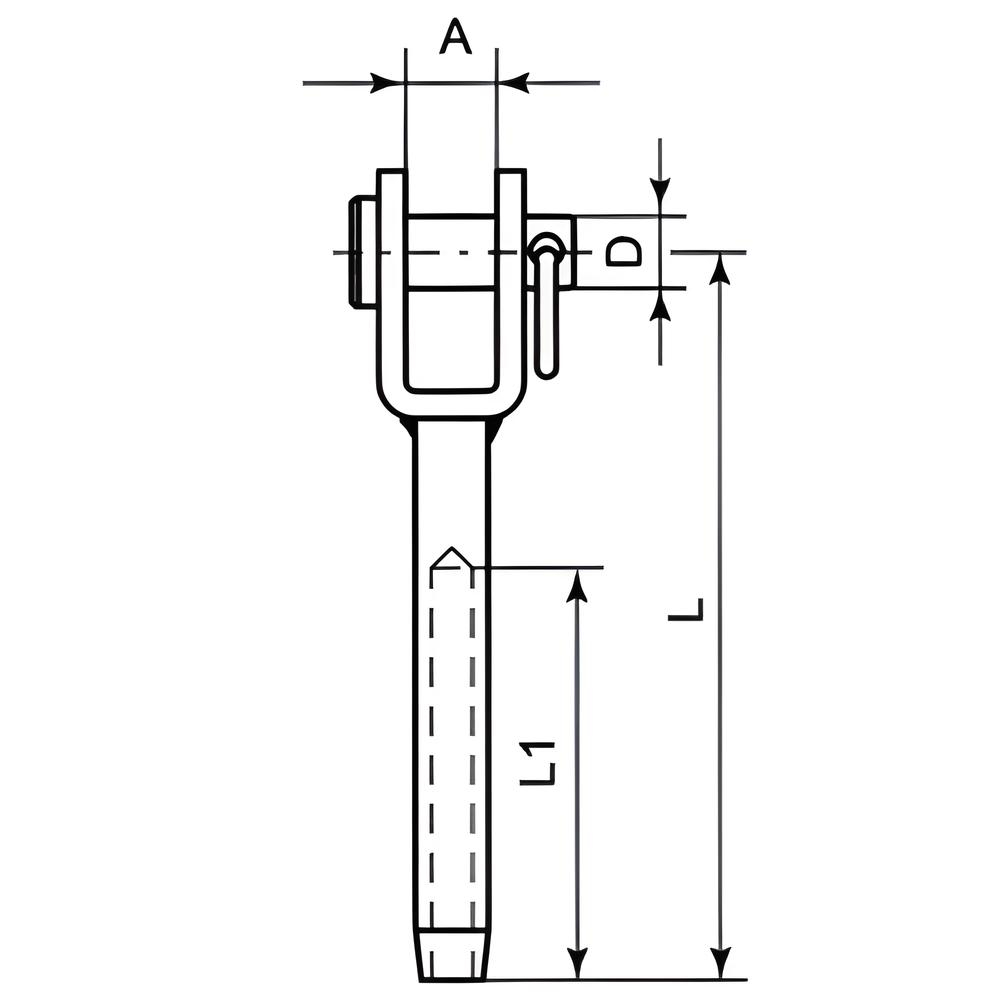

Click below for an engineering drawing :

Product Information :

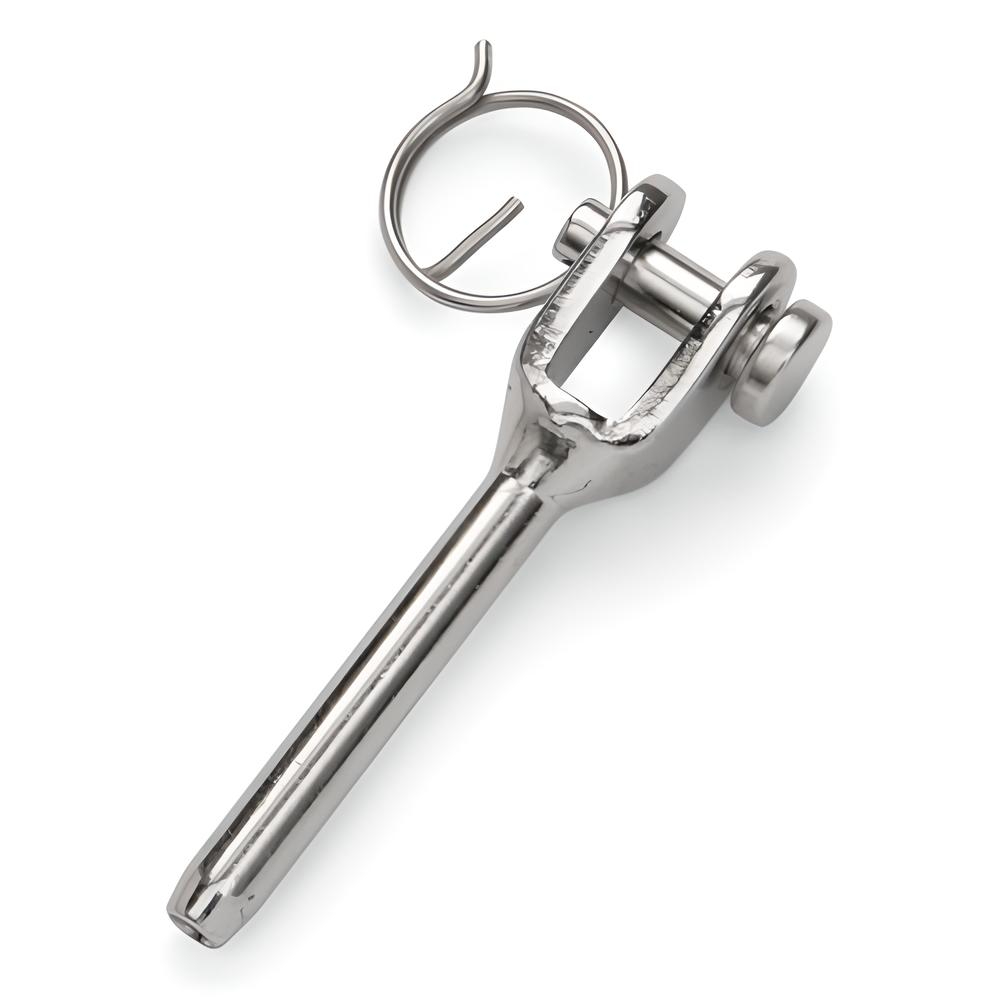

Stainless Steel Fork Terminal

Terminals are used at the ends of lengths of wire as connectors or end stops. Fork Terminals have jaw opening with clevis pin, that
allows the wire to be attached to stationery points such as eye plates, eyebolts and lacing eyes. The process used to join the wire and fork terminal is hydraulic swaging or pressing. Because of the kit required, these terminals are generally not best suited for DIY projects or on-site jobs.
For wire rope assembly solutions that are easy to fit by hand, take a look at our self assembly range. Available in sizes 2-16mm. Made in 316 Stainless Steel.
Other names for this product: Jaw Terminal, Swage Jaw, Swage Fork
