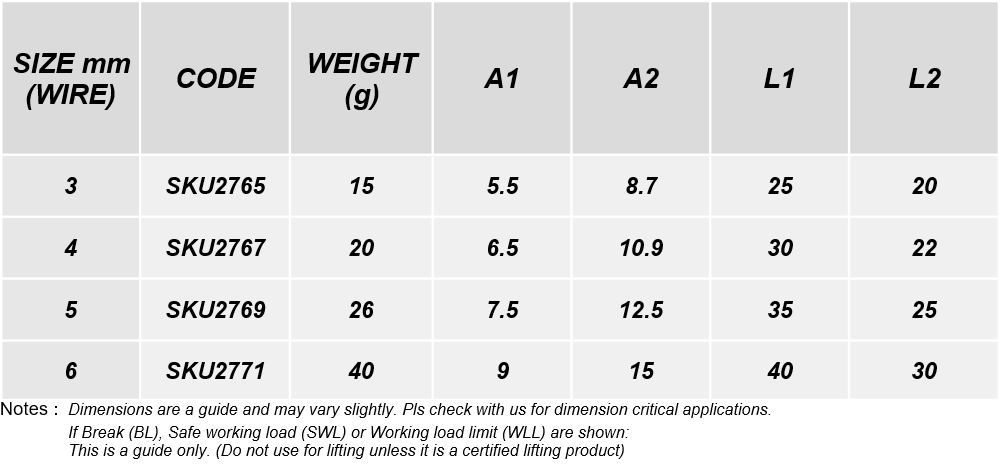

Chart showing Approximate dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL -
Please refer to the Datasheets for more information.
Product Information :
Stainless Steel Mini Dome Head Terminal
Terminals are used at the ends of lengths of wire as connectors or end stops. Mini Dome Head Terminals are also part of the architectural range and are an end stop for the wire, often used where the wire passes through metal posts for balustrading.The process used to join the wire and eye terminal is hydraulic swaging or pressing. Because of the kit required, these terminals are generally not best suited for DIY projects or on-site jobs.We offer swaging services - please contact us for details.Available in sizes 3-6mm. Made in 316 Stainless Steel.
Other names for this product: Dome Head Swage Terminal
Click the image to Download Datasheets
