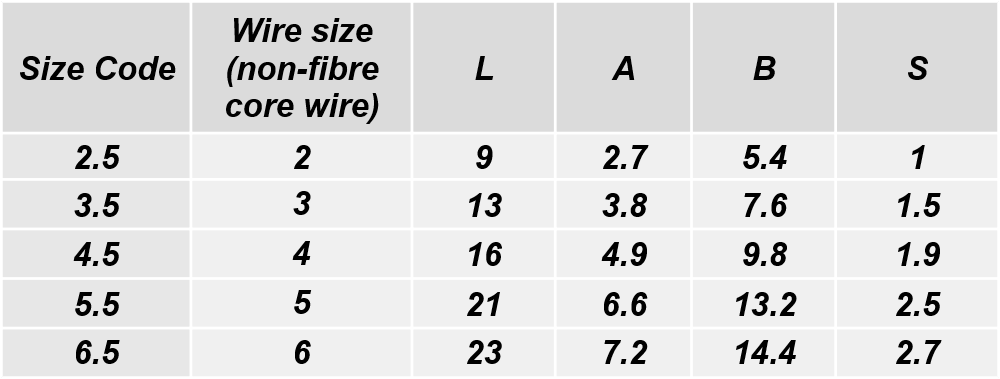

Chart showing dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances. Where WLL or Break load are shown : SWL or WLL = Safe working load limit (kg) :
For "dimension sensitive" applications pls ask for measurement.
This is the recommended maximum weight the product should carry and will vary from batch to batch. Break Load :
This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)
Click below for an engineering drawing :
Product Information :
Stainless Steel Copper Ferrule (Nickel Plated)
Nickel Plated copper ferrules can be used where the aesthetic appearance of a stainless finish is required
Copper ferrules are a tough, permanent fastening solution for wire rope assemblies and installations. You will require a ferrule pressing tool for use with this product, which can be bought or hired dependant on your requirements.
Instructions on how to correctly fit these parts can be found elsewhere on our website. Copper ferrules should be used with Stainless Steel wire. We also sell Self Colour Copper Ferrules. Stainless Steel ferrules can also be used with Stainless Steel wire. Contact us for prices. We currently supply ferrules suitable for 2-6mm wire. For other sizes, please call us.
Other names for this product: Crimp
