Hydraulic Crimping Pliers and Dies

Hydraulic crimping tool
Dimensions: with 4 different size Dies available
Material: Steel

Items marked with *** are Special order.

Click the option box to choose size

P2000

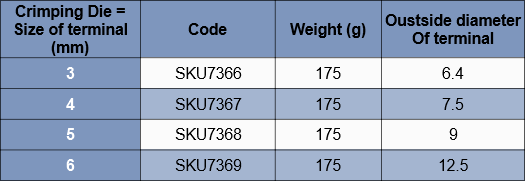

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

Click below for an engineering drawing :

Product Information :

Hydraulic Hand Held Press

Our Hydraulic Crimping Tool gives you the ability to make and install swaged wire rope assemblies yourself, in your workshop or on-site. They have a force of 12 tons, and a width of 12mm. They can be used with dies for both ferrule pressing and swage crimping. Supplied in a plastic case. Dies are sold seperately. Dies are made from high quality tool steel, which makes them durable, hard, and tough. Made in Germany. Ferrules dies can be used with aluminium, copper and Stainless Steel ferrules.
Other names for this product: Ferrule Press, Crimping Press, Swaging Press, Swaging Tool
